A good PCB layout for the TPS51604DSGR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The choice of input and output capacitors for the TPS51604DSGR depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be at least 10uF for the input capacitor and 22uF for the output capacitor.
The TPS51604DSGR is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. In general, it's recommended to keep the ambient temperature below 85°C for optimal performance and reliability.
To ensure stability and prevent oscillation, it's recommended to follow the layout guidelines in the datasheet, use a sufficient output capacitor, and add a small ceramic capacitor (e.g. 10nF) between the VOUT and GND pins. Additionally, the input voltage should be well-regulated and free of noise.
The TPS51604DSGR is capable of delivering up to 4A of output current, but the maximum output current capability depends on the input voltage, output voltage, and thermal design of the system. In general, it's recommended to derate the output current by 10-20% to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS51604DSGR Overview

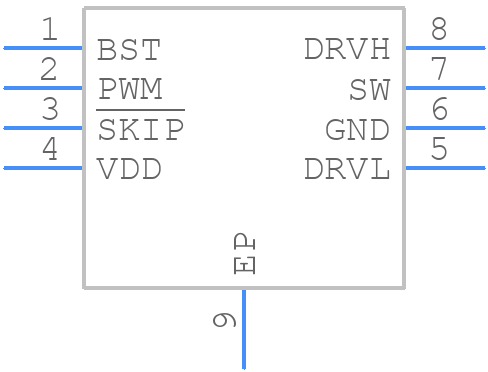

Use the download button to access the TPS51604DSGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS51,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
