TPS51604QDSGTQ1 - Texas Instruments

Description: Driver 4A 2-OUT High and Low Side Half Brdg Automotive 8-Pin WSON EP T/R

Download TPS51604QDSGTQ1 Model

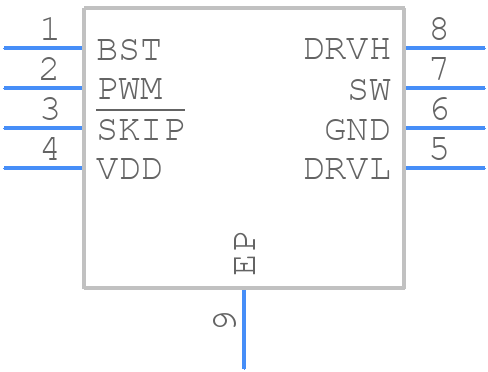

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TPS51604QDSGTQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSG0008A
click to zoom
3D Models
TPS51604QDSGTQ1 - Texas Instruments  - 3D model - Small Outline No-lead - DSG0008A
click to zoom

TPS51604QDSGTQ1 Details

  • Manufacturer Part Number:

    TPS51604QDSGTQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    PUSH-PULL BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current-Max:

    4 A

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    34 V

  • Supply Voltage1-Min:

    -0.1 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    15 µs

  • Turn-on Time:

    10 µs

  • Width:

    2 mm

TPS51604QDSGTQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect layers. Additionally, it's recommended to place the input and output capacitors close to the device and to use a Kelvin connection for the output voltage sense lines.
  • The selection of input and output capacitors depends on the specific application requirements, such as the input voltage range, output voltage, and output current. In general, it's recommended to use low-ESR capacitors with a high ripple current rating. The datasheet provides some guidance on capacitor selection, but it's also recommended to consult the capacitor manufacturer's datasheet and to perform simulations to ensure the capacitors meet the requirements.
  • The TPS51604QDSGTQ1 is rated for operation up to 125°C, but the maximum ambient temperature for reliable operation depends on the specific application and the thermal design of the system. It's recommended to perform thermal simulations and to consider the thermal derating of the device to ensure reliable operation.
  • The TPS51604QDSGTQ1 has a specific power-up and power-down sequence that must be followed to ensure proper operation. It's recommended to follow the power-up and power-down sequence outlined in the datasheet, and to use a soft-start circuit to limit the inrush current during power-up.
  • The TPS51604QDSGTQ1 provides a voltage sense pin and a current sense pin that can be used to monitor the output voltage and current. It's recommended to use a high-impedance voltage sense circuit and a low-side current sense circuit to minimize the impact on the output voltage and current. Additionally, it's recommended to use a voltage and current monitoring IC or a microcontroller to monitor the output voltage and current.
