TPS53211RGTT - Texas Instruments

Description: Buck Regulator Positive Output Step-Down - DC-DC Controller IC 16-VQFN (3x3)

Download TPS53211RGTT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

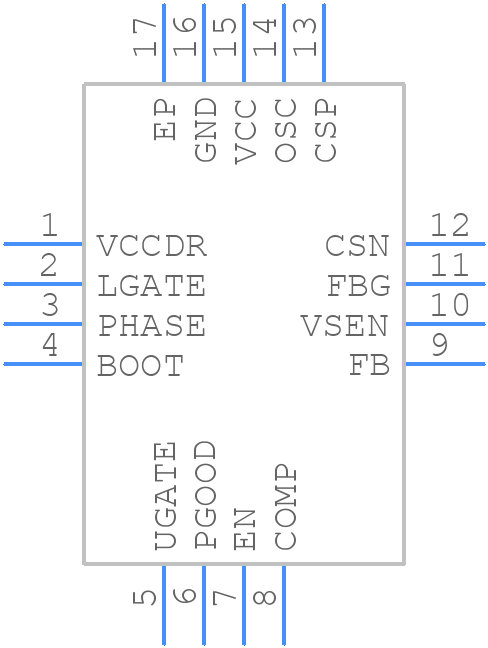

TPS53211RGTT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS53211RGTT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGT0016C height=1
click to zoom
3D Models
TPS53211RGTT - Texas Instruments - 3D model - Quad Flat No-Lead - RGT0016C height=1
click to zoom

TPS53211RGTT Details

  • Manufacturer Part Number:

    TPS53211RGTT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.8 TO 9.8V, ALSO OPERATES AS LDO REGULATOR

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    14 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    20 A

  • Output Voltage-Max:

    9.8 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS53211RGTT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPS53211RGTT datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
  • Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating to minimize voltage drops and ensure stable operation. For output capacitors, select ones with low ESR and high capacitance to filter out noise and provide stable output voltage. Refer to the datasheet for specific recommendations.
  • The TPS53211RGTT is rated for operation up to 85°C ambient temperature, but it's essential to consider the junction temperature (TJ) which should not exceed 125°C. Ensure proper thermal design and heat dissipation to maintain reliable operation.
  • The TPS53211RGTT has built-in OCP and SCP features. To implement these features, connect the OCP pin to a resistor divider network that sets the current limit, and connect the SCP pin to a capacitor that sets the short-circuit detection time. Refer to the datasheet for specific implementation details.
  • The recommended input voltage range for the TPS53211RGTT is 2.7V to 5.5V. Operating outside this range may affect performance, efficiency, and reliability. Ensure the input voltage is within the recommended range for optimal operation.
