SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
600 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS54291PWP Frequently Asked Questions (FAQs)
The recommended input capacitor value is 10uF to 22uF, and the type should be a low-ESR ceramic capacitor, such as X5R or X7R, to ensure stable operation and minimize input voltage ripple.
To minimize EMI and noise, it is recommended to follow a star-ground configuration, keep the input and output capacitors close to the device, and use a solid ground plane. Additionally, use a shielded inductor and keep the switching node (SW) away from sensitive nodes.
The maximum ambient temperature range for the TPS54291PWP is -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it is recommended to operate within a range of -20°C to 85°C for optimal performance.
Yes, the TPS54291PWP is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is designed to meet the requirements of high-reliability systems.
The output voltage ripple can be calculated using the formula: ΔVout = (IL / (2 * fsw * Cout)) * (1 / (1 - (Vin / Vout))), where IL is the output current, fsw is the switching frequency, Cout is the output capacitor value, Vin is the input voltage, and Vout is the output voltage.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS54291PWP Overview

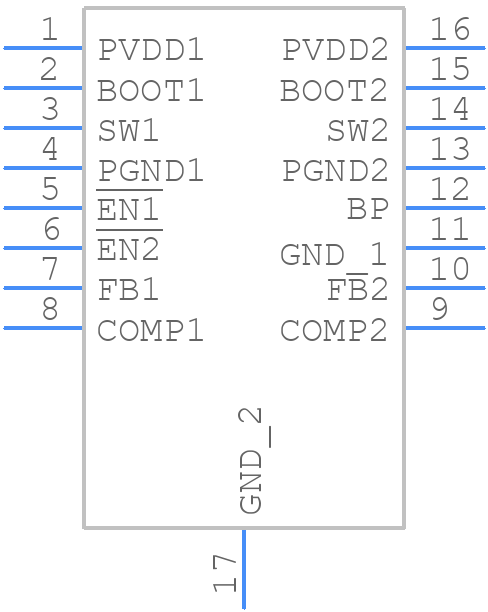

Use the download button to access the TPS54291PWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS54,
or try a keyword search, such as Switching Regulator or Controllers
