SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Voltage-Nom (Vsup):
12 V
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
700 kHz
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS54325PWP Frequently Asked Questions (FAQs)
The TPS54325PWP can handle a maximum input voltage of 42V, but it's recommended to operate within the specified input voltage range of 6.5V to 36V for optimal performance.
To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the output voltage can be adjusted using the FB pin, and the output voltage stability can be improved by adding a capacitor in parallel with the output capacitor.
The EN (enable) pin is used to enable or disable the device. When the EN pin is pulled high (above 1.4V), the device is enabled, and when it's pulled low (below 0.4V), the device is disabled. This pin can be used to implement power sequencing or to shut down the device when not in use.
The output voltage of the TPS54325PWP can be calculated using the following formula: Vout = 0.8V x (R1 / R2) + 0.8V, where R1 and R2 are the resistors connected to the FB pin. The output voltage can be adjusted by changing the ratio of R1 and R2.
The TPS54325PWP can deliver a maximum output current of 3A, but the actual output current may be limited by the input voltage, output voltage, and thermal considerations. It's essential to ensure that the device is operated within its specified thermal and electrical limits.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS54325PWP Overview

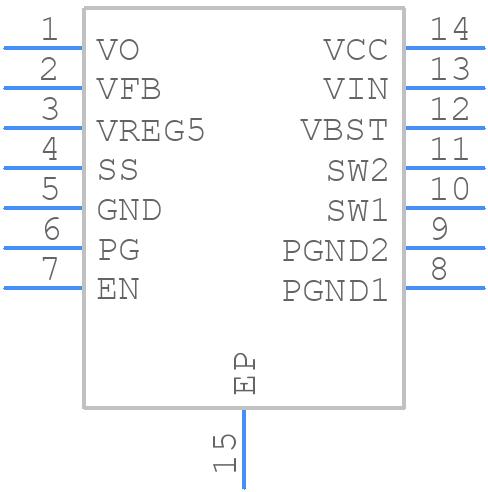

Use the download button to access the TPS54325PWP schematic symbol, PCB footprint, and 3D model.
