The maximum input voltage that can be applied to the TPS54361QDPRRQ1 is 42V, but it's recommended to operate within the specified input voltage range of 5.5V to 36V for optimal performance and reliability.
To ensure stability, it's essential to follow the recommended layout guidelines, use a suitable output capacitor with low ESR, and ensure the input capacitor is properly sized. Additionally, the output voltage can be adjusted using the FB pin, and the EN pin can be used to enable or disable the device.
The TPS54361QDPRRQ1 can deliver up to 3A of output current, but the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations. It's essential to check the device's thermal performance and power dissipation to ensure reliable operation.
The TPS54361QDPRRQ1 has built-in overcurrent protection (OCP) and thermal shutdown (TSD) features. The OCP limit is typically set to 4A, and the device will shut down if the junction temperature exceeds 150°C. It's still important to follow proper thermal design and layout guidelines to ensure reliable operation.
The TPS54361QDPRRQ1 is rated for operation up to 125°C, but the device's performance and reliability may degrade at higher temperatures. It's essential to consider the device's thermal performance and power dissipation when operating in high-temperature environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS54361QDPRRQ1 Overview

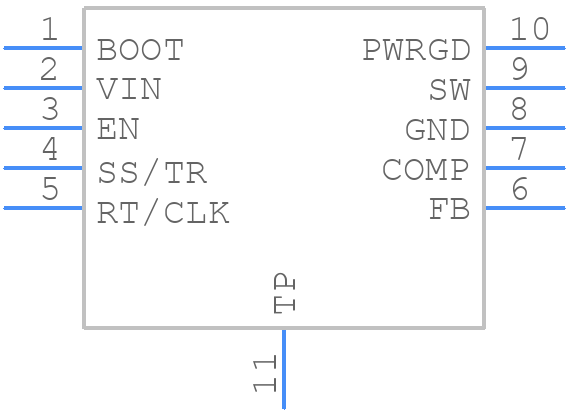

Use the download button to access the TPS54361QDPRRQ1 schematic symbol, PCB footprint, and 3D model.
