The maximum input voltage that can be applied to the TPS54361QDPRTQ1 is 42V, but it's recommended to operate within the specified input voltage range of 5.5V to 36V for optimal performance and reliability.
To ensure the stability of the output voltage, it's essential to follow the recommended layout guidelines, use a suitable output capacitor, and ensure that the input voltage is within the specified range. Additionally, the output voltage can be adjusted using the FB pin, and the output voltage tolerance can be set using the EN pin.
The maximum output current that the TPS54361QDPRTQ1 can deliver is 3A, but it's recommended to operate within the specified output current range of 0.5A to 2.5A for optimal performance and reliability.
To protect the TPS54361QDPRTQ1 from overheating, it's essential to ensure good thermal design, use a suitable heat sink, and operate within the specified temperature range of -40°C to 125°C. Additionally, the device has built-in thermal protection, which will shut down the device if the junction temperature exceeds 150°C.
Yes, the TPS54361QDPRTQ1 is suitable for high-reliability applications, such as automotive, industrial, and aerospace systems. It's manufactured using a high-reliability process, and it's qualified to the AEC-Q100 standard for automotive applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS54361QDPRTQ1 Overview

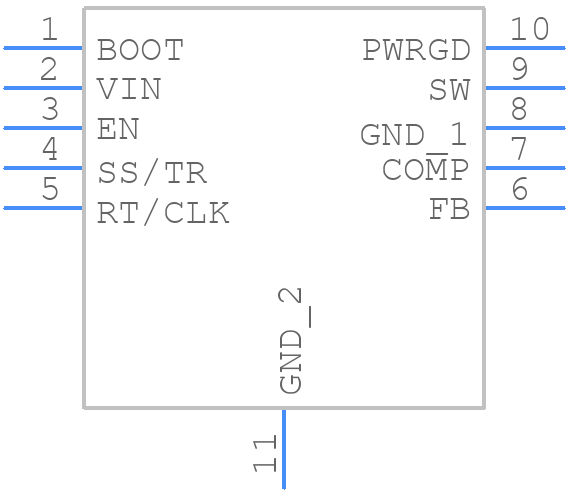

Use the download button to access the TPS54361QDPRTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS54,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
