The TPS54394RSAT can handle a maximum input voltage of 42V, but it's recommended to operate within the specified input voltage range of 6.5V to 36V for optimal performance.
To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the output voltage can be adjusted using the FB pin, and the output voltage stability can be improved by adding a capacitor in parallel with the output capacitor.
The TPS54394RSAT can deliver a maximum output current of 3A, but the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations. It's essential to check the device's thermal performance and adjust the output current accordingly.
The TPS54394RSAT has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCSET pin and the input voltage. The overcurrent threshold can be adjusted by selecting the appropriate resistor value. Additionally, the device also has a thermal shutdown feature that protects the device from overheating.
The EN (enable) pin is used to enable or disable the device. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. The EN pin can be used to implement power sequencing, shutdown, or low-power modes in the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS54394RSAT Overview

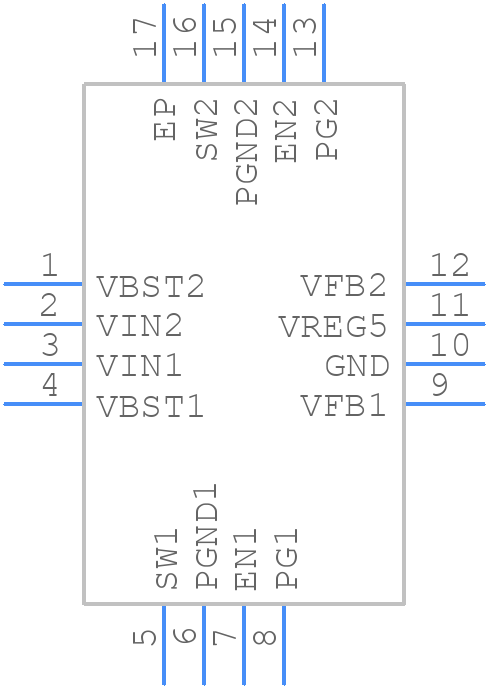

Use the download button to access the TPS54394RSAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS54,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
