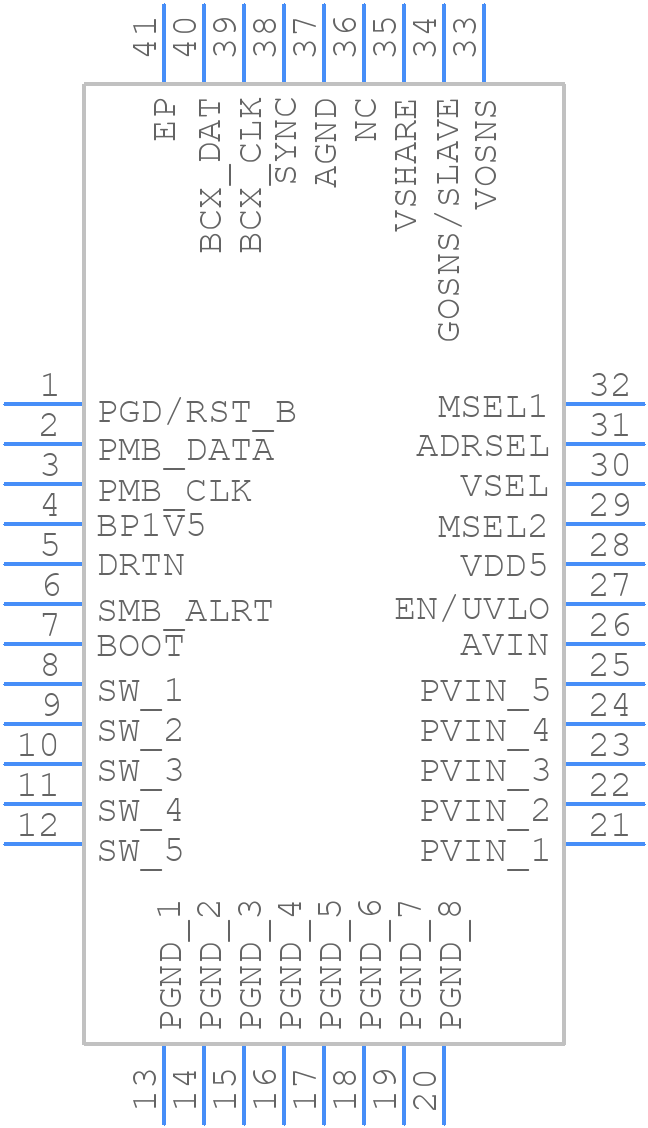

TPS546A24ARVFR - Texas Instruments

TPS546A24ARVFR Details

• Manufacturer Part Number:

  TPS546A24ARVFR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Date Of Intro:

  2020-02-23

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  18 V

• Input Voltage-Min:

  2.95 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PQCC-N40

• JESD-609 Code:

  e4

• Length:

  7 mm

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  40

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  10 A

• Output Voltage-Max:

  5.5 V

• Output Voltage-Min:

  0.25 V

• Output Voltage-Nom:

  1.5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HQCCN

• Package Equivalence Code:

  LCC40,.2X.28,20

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1.52 mm

• Supply Current-Max (Isup):

  12 mA

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  1500 kHz

• Technology:

  BICMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  5 mm
