The maximum input voltage that can be applied to the TPS546C20ARVFR is 6.5V, as specified in the datasheet. However, it's recommended to keep the input voltage below 6V to ensure reliable operation and to prevent damage to the device.
To minimize noise and ensure reliable operation, it's recommended to follow good PCB layout practices such as separating the power and ground planes, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, the datasheet provides a recommended PCB layout and thermal pad connection diagram that should be followed.
The minimum ESR required for the output capacitor is not explicitly specified in the datasheet. However, a general rule of thumb is to use an output capacitor with an ESR of less than 1 ohm to ensure stable operation. It's also recommended to use a capacitor with a low ESL (Equivalent Series Inductance) to minimize ringing and oscillations.
The TPS546C20ARVFR is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation. The datasheet provides a thermal derating curve that should be consulted to determine the maximum output current and input voltage at a given temperature.
The power dissipation of the TPS546C20ARVFR can be calculated using the equation: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. The datasheet provides a graph of the power dissipation vs. output current that can be used to estimate the power dissipation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS546C20ARVFR Overview

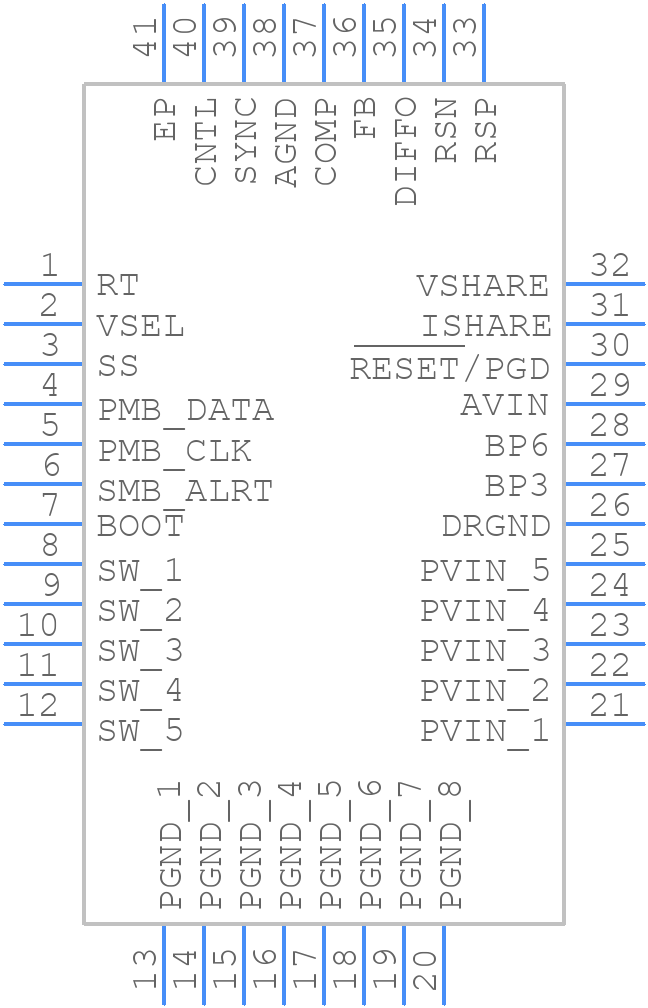

Use the download button to access the TPS546C20ARVFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS54,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
