TPS54880PWP - Texas Instruments

Description: 4.5 to 5.5V Input, 8A Synchronous Step-Down SWIFT™ Converter for Sequencing

Download TPS54880PWP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

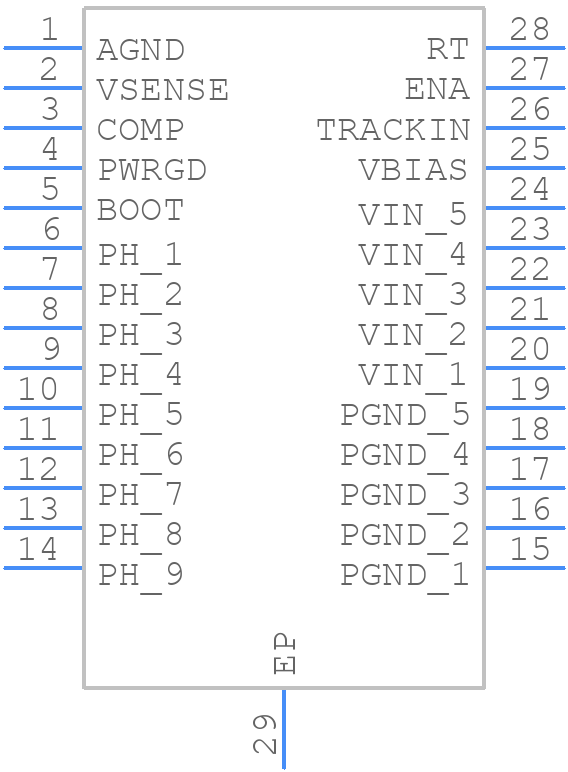

Symbol
TPS54880PWP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS54880PWP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP (R-PDSO-G28)-
click to zoom
3D Models
TPS54880PWP - Texas Instruments - 3D model - Small Outline Packages - PWP (R-PDSO-G28)-
click to zoom

TPS54880PWP Details

  • Manufacturer Part Number:

    TPS54880PWP

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    4.5 V

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    8 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    0.9 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    700 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPS54880PWP Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS54880PWP involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. TI provides a recommended PCB layout in the datasheet and application notes.
  • Choose input and output capacitors with low ESR, high ripple current rating, and a voltage rating that exceeds the maximum input voltage. X5R or X7R ceramic capacitors are good options. The datasheet provides guidelines for capacitor selection.
  • The TPS54880PWP is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
  • Yes, the TPS54880PWP is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is manufactured using automotive-grade processes.
  • Use an oscilloscope to monitor the input and output voltages, and check for signs of oscillation or ringing. Verify that the input voltage is within the recommended range, and ensure proper thermal design and heat sinking. Consult the datasheet and application notes for troubleshooting guidelines.
