TPS54J060RPGR - Texas Instruments

Description: 4-V to 16-V input, 6-A synchronous buck converter, 900-mV reference voltage, latch-off current limit

Download TPS54J060RPGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

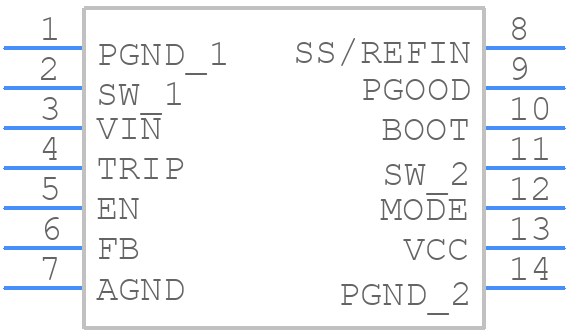

TPS54J060RPGR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS54J060RPGR - Texas Instruments PCB footprint - Other - Other - RPG0014A
click to zoom
3D Models
TPS54J060RPGR - Texas Instruments - 3D model - Other - RPG0014A
click to zoom

TPS54J060RPGR Details

  • Manufacturer Part Number:

    TPS54J060RPGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-10-03

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    VIN = 4V TO 16V WHEN BIASING INTERNALLY

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    R-PQCC-N14

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.9 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC14,.08X.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.9 mA

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

TPS54J060RPGR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS54J060RPGR is 60V, as specified in the datasheet. However, it's recommended to derate the input voltage to ensure reliable operation and to prevent damage to the device.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet. Additionally, the output capacitor should be selected based on the output voltage and current requirements, and the input capacitor should be selected based on the input voltage and current requirements.
  • The maximum output current that the TPS54J060RPGR can deliver is 1A, as specified in the datasheet. However, the actual output current may be limited by the input voltage, output voltage, and thermal considerations.
  • The TPS54J060RPGR has built-in overcurrent protection (OCP) and thermal shutdown (TSD) features to protect the device from damage. However, it's still essential to follow proper design and layout guidelines to prevent overheating and overcurrent conditions.
  • The TPS54J060RPGR is rated for operation up to 125°C, but the device's performance and reliability may be affected at high temperatures. It's essential to follow the recommended operating conditions and derate the device's performance accordingly.
