TPS563212DRLR - Texas Instruments

Description: Switching Voltage Regulators 4.2-V to 18-V, 3-A, 1.2-MHz, synchronous buck converter with eco-mode and selectable FCCM

Download TPS563212DRLR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

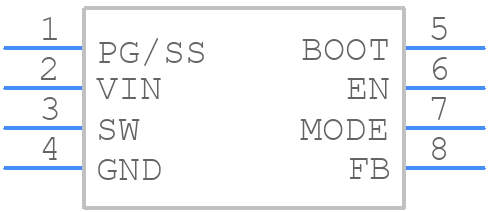

TPS563212DRLR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS563212DRLR - Texas Instruments PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - DRL0008A
click to zoom
3D Models
TPS563212DRLR - Texas Instruments - 3D model - SO Transistor Flat Lead - DRL0008A
click to zoom

TPS563212DRLR Details

  • Manufacturer Part Number:

    TPS563212DRLR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4.2 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Length:

    2.1 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    7 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSOF

  • Package Equivalence Code:

    FL8,.05,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1300 kHz

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.2 mm

TPS563212DRLR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS563212DRLR is 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to use a suitable output capacitor with a minimum capacitance of 10uF and an ESR of less than 1 ohm. Additionally, the output capacitor should be placed as close as possible to the output pins of the device.
  • The minimum input capacitance required for the TPS563212DRLR is 4.7uF, but it's recommended to use a higher value (e.g., 10uF) to ensure stable operation and to filter out high-frequency noise.
  • The TPS563212DRLR is rated for operation up to 125°C, but it's essential to ensure that the device is properly cooled and that the junction temperature (TJ) does not exceed 150°C. Exceeding the maximum TJ can reduce the device's reliability and lifespan.
  • The power dissipation of the TPS563212DRLR can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current.
