Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect the input and output capacitors to the ground plane.
The selection of input and output capacitors depends on the specific application requirements. In general, low-ESR capacitors with high ripple current ratings are recommended. The datasheet provides guidelines for capacitor selection, but it's also recommended to consult the capacitor manufacturer's datasheet and application notes.
The TPS56428DDA is rated for operation up to 125°C junction temperature. However, the maximum ambient temperature depends on the specific application and the thermal design of the system. A general rule of thumb is to derate the device by 10°C to 15°C to ensure reliable operation.
Oscillations or instability issues can be caused by a variety of factors, including poor PCB layout, inadequate decoupling, or incorrect component selection. To troubleshoot, start by verifying the PCB layout and component selection, then check the input and output voltage waveforms using an oscilloscope. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
The TPS56428DDA is a commercial-grade device, but it can be used in high-reliability or automotive applications with proper design and validation. Texas Instruments provides additional resources and support for automotive and high-reliability applications, including AEC-Q100 qualification and PPAP documentation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS56428DDA Overview

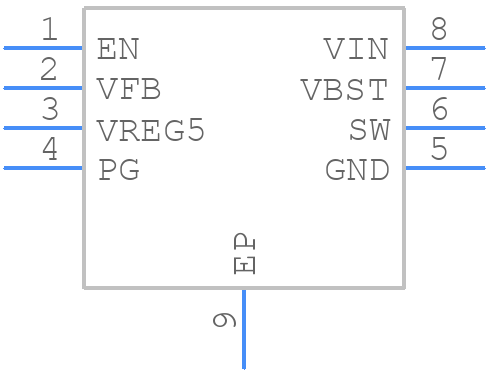

Use the download button to access the TPS56428DDA schematic symbol, PCB footprint, and 3D model.
