A good PCB layout for the TPS56528DDAR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate power plane for the input voltage and to keep the noise-sensitive analog traces away from the switching node.
The inductor value depends on the input voltage, output voltage, and output current. A good starting point is to use the inductor value recommended in the datasheet. However, you may need to adjust the value based on your specific application requirements. You can use the following formula as a guideline: L (μH) = (Vin - Vout) / (ΔI * f * Δt), where ΔI is the peak-to-peak inductor current, f is the switching frequency, and Δt is the on-time of the switch.
The TPS56528DDAR is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor is properly sized and that the feedback network is properly compensated. You can also use the Texas Instruments' WEBENCH online design tool to simulate and optimize your design for stability.
The TPS56528DDAR is capable of delivering up to 2.5A of output current. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations. Be sure to check the device's thermal performance and adjust the output current accordingly to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS56528DDAR Overview

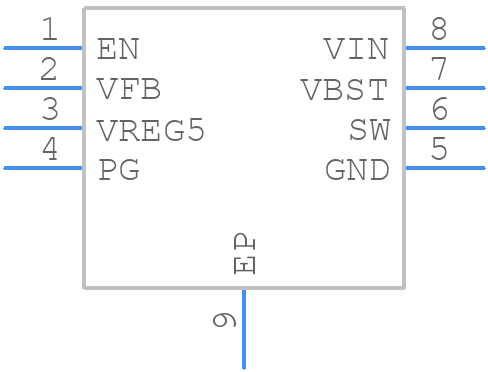

Use the download button to access the TPS56528DDAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS56,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
