SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
DOUBLER INVERTER
Switching Frequency-Max:
450 kHz
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS60124PWPR Frequently Asked Questions (FAQs)
The recommended layout and placement for the TPS60124PWPR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the loop area of the input and output traces to reduce EMI. TI provides a layout guide in the datasheet and application notes.
Optimizing the performance of the TPS60124PWPR involves selecting the right input and output capacitors, setting the correct output voltage, and adjusting the feedback resistors. TI provides application notes and design tools, such as the WEBENCH Power Designer, to help with this process.
The TPS60124PWPR can operate in ambient temperatures up to 85°C, but the junction temperature should not exceed 125°C. The device's thermal performance can be improved by using a heat sink or a thermally-enhanced package.
Ensuring the reliability and long-term stability of the TPS60124PWPR involves following proper design and manufacturing practices, such as using a clean and dry assembly process, avoiding electrical overstress, and performing thorough testing and validation.
Yes, the TPS60124PWPR is suitable for high-reliability and safety-critical applications, such as automotive, industrial, and medical devices. However, it is essential to follow TI's guidelines for reliability and safety, and to perform thorough testing and validation to ensure the device meets the required standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS60124PWPR Overview

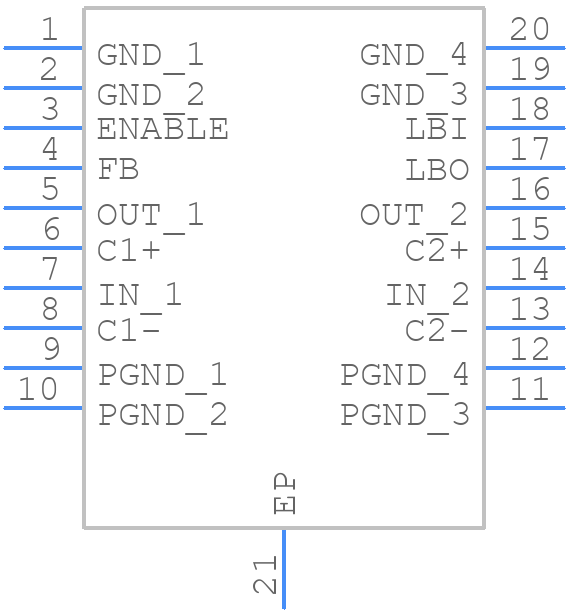

Use the download button to access the TPS60124PWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS60,
or try a keyword search, such as Switching Regulator or Controllers
