SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
DOUBLER INVERTER
Switching Frequency-Max:
450 kHz
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS60132PWP Frequently Asked Questions (FAQs)
The recommended layout and placement for the TPS60132PWP can be found in the Texas Instruments application note 'TPS6013x Layout and Placement Guidelines' (SLVAU65). It provides guidance on component placement, routing, and thermal considerations to ensure optimal performance and reliability.
The output voltage ripple of the TPS60132PWP can be calculated using the equation: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency. Additionally, the datasheet provides a graph of output voltage ripple vs. output current and switching frequency.
The maximum input voltage that the TPS60132PWP can handle is 5.5V, as specified in the datasheet. Exceeding this voltage may damage the device or affect its performance.
The TPS60132PWP is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may be affected at high temperatures. It is recommended to consult the datasheet and application notes for thermal management and derating guidelines.
To ensure stability and prevent oscillation, it is recommended to follow the guidelines in the datasheet and application notes for component selection, layout, and compensation. Additionally, the device's stability can be verified by measuring the output voltage ripple and phase margin using a network analyzer or a oscilloscope.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS60132PWP Overview

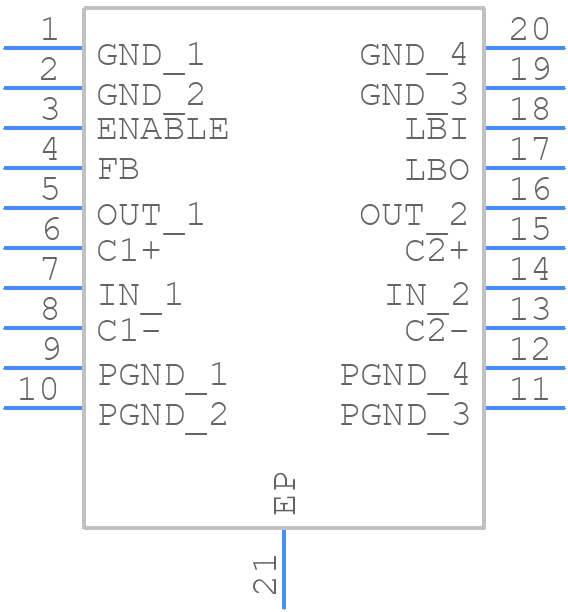

Use the download button to access the TPS60132PWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS60,
or try a keyword search, such as Switching Regulator or Controllers
