The recommended input capacitor value is 1uF to 10uF, depending on the input voltage and output current requirements. A larger capacitor value can help to reduce input voltage ripple and improve output voltage regulation.
To ensure the TPS60205DGSR operates within its SOA, ensure that the input voltage, output current, and ambient temperature are within the recommended operating conditions specified in the datasheet. Additionally, ensure that the device is properly thermally managed and that the PCB layout is designed to minimize thermal resistance.
The maximum output current that the TPS60205DGSR can deliver is 500mA. However, the actual output current capability may be limited by the input voltage, output voltage, and ambient temperature.
The TPS60205DGSR is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It is recommended to derate the output current and ensure proper thermal management to ensure reliable operation in high-temperature environments.
To minimize EMI with the TPS60205DGSR, ensure that the PCB layout is designed to minimize loop areas and keep sensitive analog signals away from the switching node. Additionally, use a solid ground plane, and consider using shielding and filtering components to reduce EMI emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS60205DGSR Overview

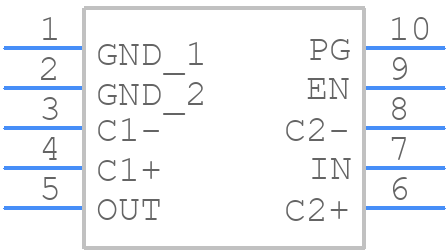

Use the download button to access the TPS60205DGSR schematic symbol, PCB footprint, and 3D model.
