The recommended input capacitor value is 1-10uF, and the type should be a low-ESR ceramic capacitor, such as X5R or X7R, to ensure stable operation and minimize noise.
Follow the recommended PCB layout guidelines in the datasheet, including keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and loops. Additionally, consider using a shielded inductor and placing the device away from noise sources.
The maximum ambient temperature range for the TPS60210DGS is -40°C to 85°C, but the device can operate up to 125°C with derating. Refer to the datasheet for thermal derating curves.
Yes, the TPS60210DGS can be used in battery-powered devices. To ensure low quiescent current, enable the shutdown pin (EN) and use a low-IQ mode, such as the Power-Save Mode, which reduces the quiescent current to around 1uA.
Select an inductor with a value between 1-10uH, and a type that is suitable for high-frequency switching, such as a shielded inductor or a ferrite bead inductor. The inductor should also have a low DC resistance and a high saturation current rating.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS60210DGS Overview

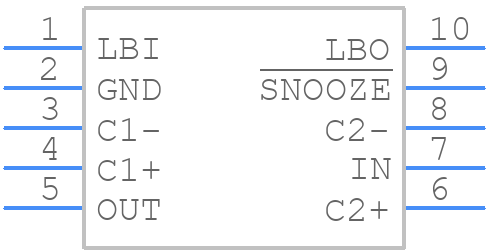

Use the download button to access the TPS60210DGS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS60,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
