Texas Instruments provides a recommended layout and placement guide in the TPS60243DGKT datasheet, which includes guidelines for component placement, routing, and thermal considerations. Additionally, the TI website provides a layout guide document (SLUU323) that provides more detailed information on layout and placement best practices.
To ensure stability, follow the recommended component values and layout guidelines in the datasheet. Additionally, make sure to decouple the input and output pins with capacitors, and use a low-ESR output capacitor. If oscillation occurs, try adding a small ceramic capacitor (e.g., 10nF) between the VOUT and GND pins to improve stability.
The TPS60243DGKT has an absolute maximum input voltage rating of 6.5V. However, the recommended operating input voltage range is 2.7V to 5.5V. Exceeding the absolute maximum rating can damage the device.
The TPS60243DGKT has an operating junction temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. For high-temperature applications, consider using a device with a higher temperature rating or implementing thermal management techniques, such as heat sinking or airflow.
The output voltage of the TPS60243DGKT is set by the resistor divider network (R1 and R2) connected to the FB pin. The output voltage can be calculated using the formula: VOUT = 1.2V x (1 + R2/R1). Make sure to choose resistor values that provide the desired output voltage and ensure that the total resistance is within the recommended range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS60243DGKT Overview

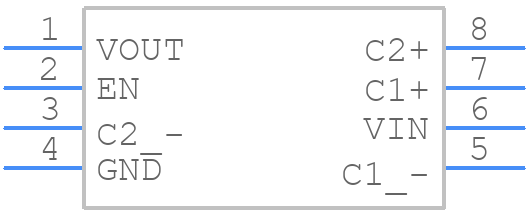

Use the download button to access the TPS60243DGKT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS60,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
