TPS61061YZFR - Texas Instruments

Description: LED Lighting Drivers 19V 400mA Switch 1MHz Boost Converter

Download TPS61061YZFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

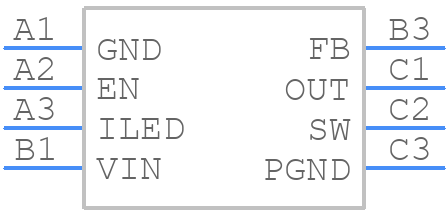

TPS61061YZFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS61061YZFR - Texas Instruments PCB footprint - BGA - BGA - YZF (S-XBGA-N8)_1
click to zoom
3D Models
TPS61061YZFR - Texas Instruments - 3D model - BGA - YZF (S-XBGA-N8)_1
click to zoom

TPS61061YZFR Details

  • Manufacturer Part Number:

    TPS61061YZFR

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    BGA

  • Package Description:

    DSBGA-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PBGA-B8

  • JESD-609 Code:

    e1

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA8,3X3,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.625 mm

  • Supply Voltage-Max:

    6 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN SILVER COPPER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS61061YZFR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance is to keep the input and output capacitors close to the IC, and to use a solid ground plane to reduce noise and EMI. Additionally, it is recommended to use a separate layer for the output voltage and to keep the output voltage away from the input voltage to prevent noise coupling.
  • To choose the right inductor for your application, consider the following factors: inductor value, inductor type (e.g. shielded or unshielded), inductor size, and inductor saturation current. The inductor value should be chosen based on the output voltage and current requirements, and the inductor type should be chosen based on the noise and EMI requirements. The inductor size should be chosen based on the available PCB space, and the inductor saturation current should be chosen based on the maximum output current.
  • The maximum operating temperature for the TPS61061YZFR is 125°C. However, it is recommended to operate the device at a temperature below 85°C to ensure reliable operation and to prevent thermal shutdown.
  • The output voltage of the converter can be calculated using the following equation: Vout = Vin * (1 + R1/R2), where R1 and R2 are the resistors used in the feedback network. The output voltage can also be adjusted by adjusting the values of R1 and R2.
  • The maximum input voltage for the TPS61061YZFR is 18V. However, it is recommended to operate the device at an input voltage below 15V to ensure reliable operation and to prevent overvoltage protection.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS61061YZFR Overview

Use the download button to access the TPS61061YZFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS61, or try a keyword search, such as Display Drivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
