ALSO OPERATES IN ADJUSTABLE MODE FROM 2.8V TO 18.5V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
6 V
Input Voltage-Min:
2.3 V
Input Voltage-Nom:
3.3 V
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e4
Length:
4.4 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
2 A
Output Voltage-Max:
18.5 V
Output Voltage-Min:
2.8 V
Output Voltage-Nom:
12 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
BOOST
Switching Frequency-Max:
1500 kHz
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPS61085PWRG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency layout guidelines, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The selection of the inductor depends on the output current, switching frequency, and output voltage. TI provides an inductor selection guide in the datasheet, but it's also recommended to consult with inductor manufacturers and consider factors such as inductor core material, size, and saturation current.
The TPS61085PWRG4 is rated for operation up to 125°C, but the maximum ambient temperature for reliable operation depends on the specific application and thermal design. It's recommended to consider the thermal derating curves in the datasheet and ensure proper heat sinking and airflow in the system.
To ensure EMC compliance, it's recommended to follow proper PCB layout and shielding techniques, use a common-mode choke or ferrite bead on the input, and consider adding EMI filters or shielding on the output. TI also provides EMC guidelines in the datasheet and application notes.
The recommended input capacitor type is a low-ESR ceramic capacitor, such as an X5R or X7R type. The value depends on the input voltage and output current, but a typical value is 10-22uF. It's also recommended to consider the capacitor's voltage rating, temperature coefficient, and ripple current rating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS61085PWRG4 Overview

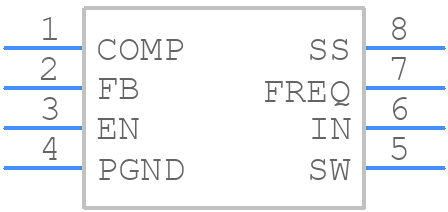

Use the download button to access the TPS61085PWRG4 schematic symbol, PCB footprint, and 3D model.
