ALSO OPERATES IN ADJUSTABLE MODE FROM 2.5V TO 5.5V
Analog IC - Other Type:
BATTERY CHARGE CONTROLLER
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
5.5 V
Input Voltage-Min:
1.8 V
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e4
Length:
5 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
1.6 A
Output Voltage-Max:
5.5 V
Output Voltage-Min:
2.5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
BUCK-BOOST
Switching Frequency-Max:
600 kHz
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS61130PWR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency layout guidelines, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The datasheet provides guidelines for capacitor selection, but it's also important to consider factors such as capacitor type (e.g. ceramic, electrolytic), voltage rating, and ESR (equivalent series resistance). A good rule of thumb is to choose capacitors with low ESR and high ripple current ratings.
The datasheet specifies an operating junction temperature range of -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and cooling conditions. As a general rule, it's recommended to derate the device's power dissipation at higher ambient temperatures.
Yes, the TPS61130PWR is qualified for automotive and high-reliability applications, but it's essential to follow the recommended design and manufacturing guidelines, and to perform thorough testing and validation to ensure the device meets the specific application requirements.
Troubleshooting issues with the TPS61130PWR often requires a systematic approach, including checking the PCB layout, component values, and input/output voltage levels. It's also important to consult the datasheet and application notes, and to use tools such as oscilloscopes and spectrum analyzers to diagnose the issue.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS61130PWR Overview

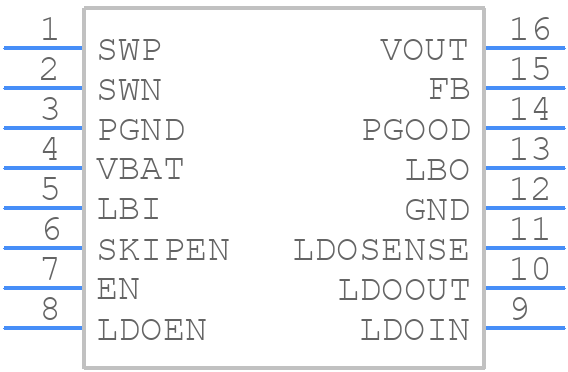

Use the download button to access the TPS61130PWR schematic symbol, PCB footprint, and 3D model.
