Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements. In general, low-ESR capacitors with high ripple current ratings are recommended. The datasheet provides some guidance on capacitor selection, but it's also recommended to consult the capacitor manufacturer's datasheet and application notes.
The TPS61180RTET is rated for operation up to 125°C, but the maximum ambient temperature for reliable operation depends on the specific application and the thermal design of the system. It's recommended to follow the thermal design guidelines in the datasheet and to perform thermal simulations to ensure reliable operation.
To ensure stability and prevent oscillations, it's recommended to follow the compensation network design guidelines in the datasheet, and to use the recommended component values. Additionally, it's recommended to simulate the compensation network using a SPICE model or other simulation tools to verify stability.
The recommended input voltage range for optimal performance is 2.7V to 5.5V, but the device can operate down to 2.3V. However, the output voltage regulation and efficiency may be affected at lower input voltages.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS61180RTET Overview

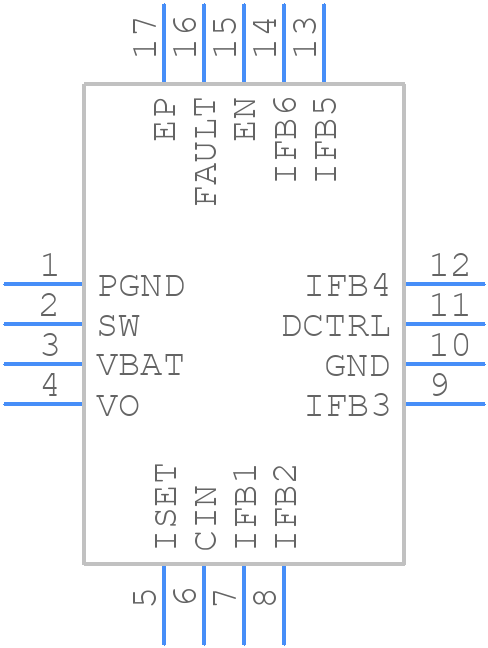

Use the download button to access the TPS61180RTET schematic symbol, PCB footprint, and 3D model.
