Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The selection of the inductor depends on the specific requirements of your application, such as the input voltage, output voltage, and output current. Texas Instruments provides a list of recommended inductors in the datasheet, but you may also need to consider factors such as inductor size, core material, and saturation current.
The TPS61256CYFFT is rated for operation up to 85°C ambient temperature, but the actual operating temperature may be limited by the specific application and the thermal design of the PCB.
To ensure stability, follow the recommended component values and PCB layout in the datasheet, and make sure to use a sufficient output capacitor with a low ESR. Additionally, you can use the Texas Instruments WEBENCH tool to simulate and optimize the design.
The TPS61256CYFFT is a commercial-grade device, but it may not meet the specific requirements of high-reliability or automotive applications. Texas Instruments offers other devices that are specifically designed and qualified for these applications, such as the TPS61256Q1.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS61256CYFFT Overview

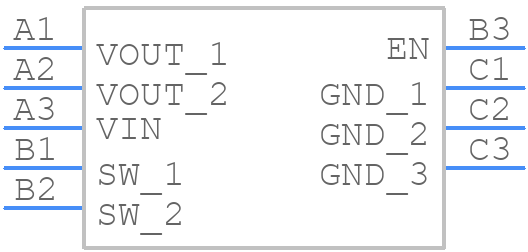

Use the download button to access the TPS61256CYFFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS61,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
