Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency layout guidelines, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. A general guideline is to use low-ESR ceramic capacitors with a voltage rating of at least 1.5 times the input voltage. The datasheet provides some guidance on capacitor selection, but it's recommended to consult with a capacitor manufacturer or a TI FAE for specific recommendations.
The maximum input voltage rating of the TPS61280AYFFT is 5.5V, but it's recommended to operate the device within the specified input voltage range of 2.7V to 5.5V to ensure optimal performance and reliability.
To ensure stability, it's recommended to follow the datasheet guidelines for component selection, PCB layout, and input/output capacitor placement. Additionally, it's recommended to add a small ceramic capacitor (e.g., 10nF) between the VIN and GND pins to filter out high-frequency noise and prevent oscillation.
The typical efficiency of the TPS61280AYFFT varies depending on the input voltage, output voltage, and load current. According to the datasheet, the device can achieve up to 95% efficiency at 3.3V input, 1.8V output, and 500mA load current. However, actual efficiency may vary depending on the specific application and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS61280AYFFT Overview

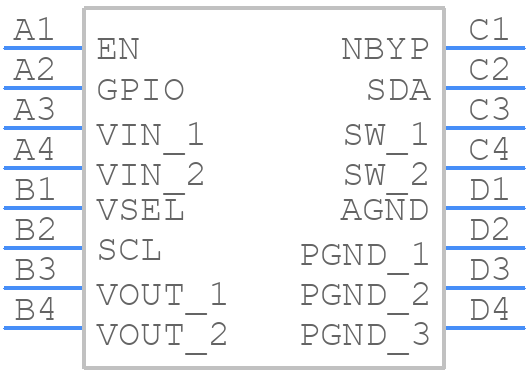

Use the download button to access the TPS61280AYFFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS61,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
