Texas Instruments provides a recommended PCB layout in the TPS61280DYFFR datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements. In general, low-ESR capacitors with high ripple current ratings are recommended. The datasheet provides some guidance on capacitor selection, but it's also recommended to consult the capacitor manufacturer's datasheet and application notes.
While the datasheet specifies an operating temperature range of -40°C to 125°C, the maximum ambient temperature for reliable operation depends on the specific application and thermal design. In general, it's recommended to keep the ambient temperature below 85°C to ensure reliable operation and minimize thermal stress.
To ensure EMC compliance, it's recommended to follow general EMC design guidelines, such as using a shielded enclosure, minimizing radiated emissions, and using filtering and shielding components. The TPS61280DYFFR datasheet provides some guidance on EMC considerations, but it's also recommended to consult relevant EMC standards and regulations.
While the datasheet specifies an input voltage range of 2.3V to 5.5V, the recommended input voltage range for optimal performance depends on the specific application requirements. In general, it's recommended to operate the device within the 3.0V to 4.5V range for optimal efficiency and performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS61280DYFFR Overview

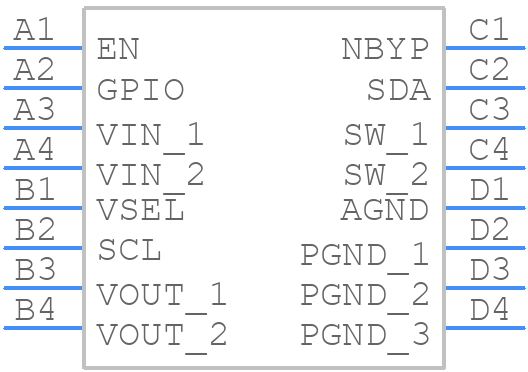

Use the download button to access the TPS61280DYFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS61,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
