Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency layout guidelines, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
To ensure stability, follow the recommended component values and PCB layout, and make sure the output capacitor has a low equivalent series resistance (ESR). Additionally, the datasheet provides a stability analysis section that can help you determine the stability of the device in your specific application.
The maximum input voltage rating of the TPS61325YFFR is 5.5V, but it's recommended to operate the device within the specified input voltage range of 2.7V to 5.5V to ensure reliable operation and to prevent damage to the device.
The TPS61325YFFR is rated for operation up to 85°C, but it's recommended to derate the output current and input voltage as the temperature increases to ensure reliable operation. Additionally, the device's performance and reliability may degrade at high temperatures, so it's essential to evaluate the device's performance in your specific application.
The output voltage of the TPS61325YFFR is determined by the resistive divider network consisting of R1 and R2. The output voltage can be calculated using the formula: VOUT = VREF * (1 + R2/R1), where VREF is the internal reference voltage (1.2V).
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS61325YFFR Overview

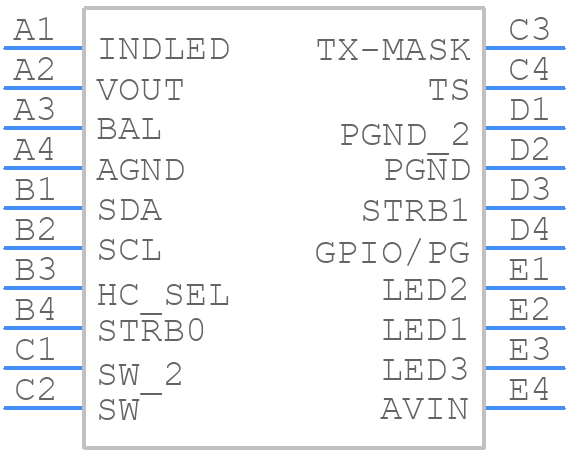

Use the download button to access the TPS61325YFFR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS61,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
