TPS61376RYHR - Texas Instruments

Description: Switching Voltage Regulators 25-V, 4.5-A, boost converter with 2.5% accuracy input average current limit & true disconnection

Download TPS61376RYHR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

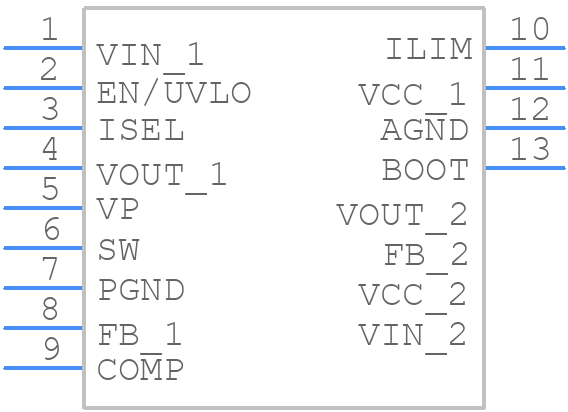

Symbol
TPS61376RYHR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS61376RYHR - Texas Instruments PCB footprint - Other - Other - RYH0013A
click to zoom
3D Models
TPS61376RYHR - Texas Instruments - 3D model - Other - RYH0013A
click to zoom

TPS61376RYHR Details

  • Manufacturer Part Number:

    TPS61376RYHR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    23 V

  • Input Voltage-Min:

    2.9 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PQCC-N13

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    13

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4.5 A

  • Output Voltage-Max:

    25 V

  • Output Voltage-Min:

    4.5 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFN

  • Package Equivalence Code:

    LCC13(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.7 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1200 kHz

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

TPS61376RYHR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a compact layout with the input and output capacitors placed close to the device, and the inductor placed close to the output capacitor. A symmetrical layout is also recommended to minimize noise and EMI.
  • Choose an inductor with a high saturation current, low DC resistance, and a suitable inductance value (typically between 1-10 μH). Consider the inductor's physical size, core material, and operating frequency when selecting an inductor.
  • A low-ESR ceramic capacitor (X5R or X7R dielectric) with a value between 4.7 μF to 10 μF is recommended. The input capacitor should be placed close to the VIN pin to minimize noise and voltage drops.
  • Ensure good thermal conduction by using a thermal pad or thermal tape on the exposed pad of the QFN package. Keep the device away from heat sources, and consider using a heat sink or thermal management techniques if the device is expected to operate at high temperatures or high currents.
  • The EN (enable) pin is used to turn the device on or off. Connect the EN pin to a logic signal (e.g., a microcontroller output) to enable or disable the device. When EN is low, the device is in shutdown mode, and when EN is high, the device is enabled.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS61376RYHR Overview

Use the download button to access the TPS61376RYHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS61, or try a keyword search

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
