A good PCB layout for the TPS62063DSGR involves placing the input and output capacitors close to the IC, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended PCB layout in the datasheet and application notes.
Choose input capacitors with low ESR and high ripple current rating. For output capacitors, choose ones with low ESR and high capacitance. TI recommends using ceramic or tantalum capacitors with X5R or X7R dielectrics. The datasheet provides guidelines for capacitor selection.
The TPS62063DSGR is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range depends on the specific application and the device's power dissipation. Consult the datasheet and thermal design guidelines for more information.
To ensure stability, follow the recommended PCB layout, choose the right input and output capacitors, and ensure the output voltage is within the specified range. Additionally, add a small ceramic capacitor (e.g., 10nF) between the VIN and EN pins to filter noise and prevent oscillation.
Yes, the TPS62063DSGR is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and is designed to withstand harsh environments. However, consult the datasheet and application notes for specific requirements and guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS62063DSGR Overview

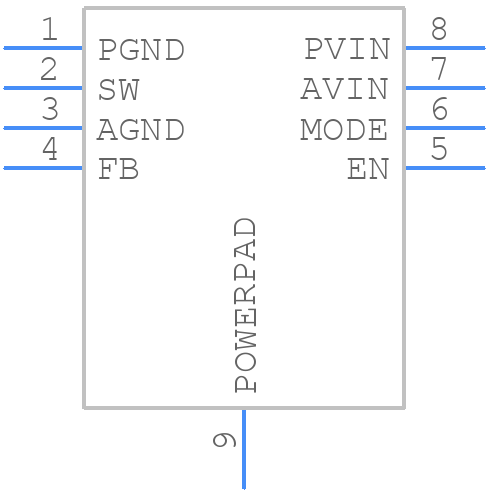

Use the download button to access the TPS62063DSGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS62,
or try a keyword search, such as Switching Regulator or Controllers
