Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency layout guidelines, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements, such as the input voltage range, output voltage, and current requirements. TI provides guidelines for capacitor selection in the datasheet, but it's also recommended to consult with capacitor manufacturers for specific recommendations.
The TPS62088AYFPR is rated for operation up to 85°C ambient temperature, but it's recommended to derate the output current and voltage according to the thermal derating curve provided in the datasheet to ensure reliable operation.
To ensure EMC compliance, it's recommended to follow TI's guidelines for PCB layout, component selection, and shielding. Additionally, it's recommended to perform EMC testing and certification according to relevant industry standards, such as CISPR 22 and EN 55022.
The recommended input voltage range for the TPS62088AYFPR is 2.7V to 6.0V, but it's recommended to consult the datasheet for specific input voltage requirements and limitations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS62088AYFPR Overview

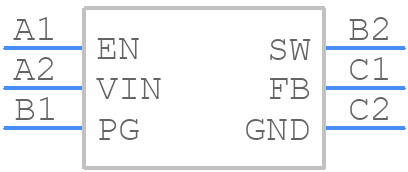

Use the download button to access the TPS62088AYFPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS62,
or try a keyword search, such as Switching Regulator or Controllers
