A good PCB layout for the TPS62091RGTR involves placing the input and output capacitors close to the IC, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the TPS62091RGTR operates within its thermal limits, it's essential to provide adequate heat sinking, such as a thermal pad or a heat sink attached to the IC. Additionally, ensure good airflow around the IC and avoid blocking the airflow with other components or obstacles.
The recommended input capacitor type for the TPS62091RGTR is a low-ESR ceramic capacitor with a value of 10uF to 22uF. The capacitor should be placed as close to the VIN pin as possible to minimize noise and ripple.
To troubleshoot issues with the TPS62091RGTR, start by checking the input voltage, output voltage, and current consumption. Verify that the input and output capacitors are properly connected and of the recommended type and value. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for noise and ripple on the input and output lines.
Yes, the TPS62091RGTR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is suitable for use in harsh environments. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS62091RGTR Overview

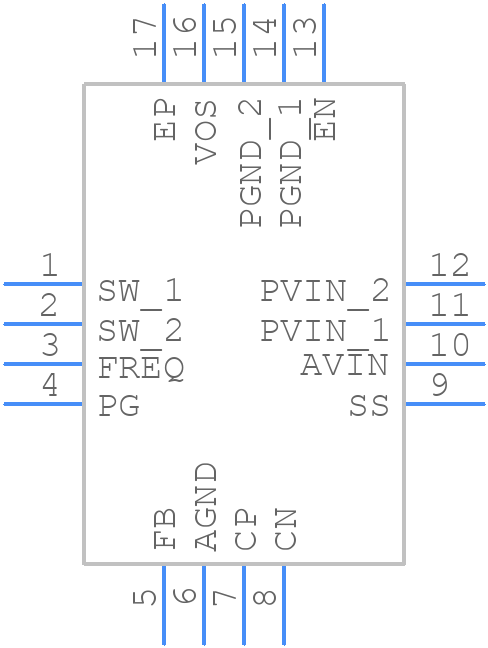

Use the download button to access the TPS62091RGTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS62,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
