ALSO OPER IN ADJ MODE FROM 0.77 TO 1.4V, PFM AND PWN TECHN ALSO POS, ALSO OPER IN CUR AND VOLT MODE
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
HYSTERETIC CURRENT MODE
Input Voltage-Max:
5.5 V
Input Voltage-Min:
2.5 V
Input Voltage-Nom:
3.6 V
JESD-30 Code:
S-XBGA-B16
JESD-609 Code:
e1
Length:
2.295 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
3 A
Output Voltage-Max:
1.4 V
Output Voltage-Min:
0.77 V
Package Body Material:
UNSPECIFIED
Package Code:
VFBGA
Package Equivalence Code:
BGA16,4X4,20
Package Shape:
SQUARE
Package Style:
GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.625 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2500 kHz
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form:
BALL
Terminal Pitch:
0.5 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
30
Width:
2.295 mm
TPS62360YZHR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency layout guidelines, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The selection of the inductor depends on the output current, output voltage, and switching frequency. TI provides an inductor selection guide in the datasheet, but you can also use online inductor selection tools or consult with an inductor manufacturer to find the right part for your application.
The TPS62360YZHR has a maximum junction temperature of 150°C, but the maximum ambient temperature depends on the specific application and the thermal design of the system. TI recommends using a thermal derating curve to determine the maximum ambient temperature for your specific application.
Yes, the TPS62360YZHR is qualified for automotive and high-reliability applications, but you need to ensure that the device is used within its specified operating conditions and that the system design meets the required reliability and safety standards.
TI provides a troubleshooting guide in the datasheet, which includes steps to identify and fix common issues. You can also use oscilloscopes and other debugging tools to analyze the device's behavior and identify the root cause of the problem.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS62360YZHR Overview

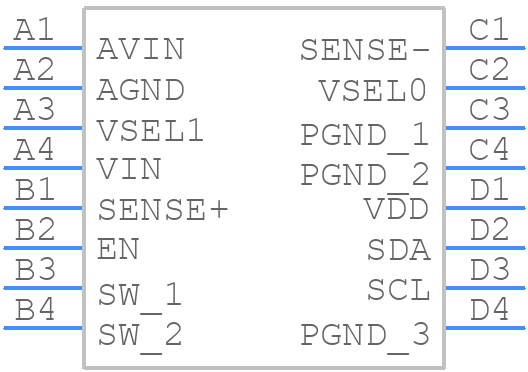

Use the download button to access the TPS62360YZHR schematic symbol, PCB footprint, and 3D model.
