ALSO OPER IN ADJ MODE FROM 0.77 TO 1.4V, PFM AND PWN TECHN ALSO POS, ALSO OPER IN CUR AND VOLT MODE
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
HYSTERETIC CURRENT MODE
Input Voltage-Max:
5.5 V
Input Voltage-Min:
2.5 V
Input Voltage-Nom:
3.6 V
JESD-30 Code:
S-XBGA-B16
JESD-609 Code:
e1
Length:
2.295 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
3 A
Output Voltage-Max:
1.4 V
Output Voltage-Min:
0.77 V
Package Body Material:
UNSPECIFIED
Package Code:
VFBGA
Package Equivalence Code:
BGA16,4X4,20
Package Shape:
SQUARE
Package Style:
GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.625 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2500 kHz
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form:
BALL
Terminal Pitch:
0.5 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
30
Width:
2.295 mm
TPS62360YZHT Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency layout guidelines, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The selection of the inductor depends on the output current, output voltage, and switching frequency. TI provides an inductor selection guide in the datasheet, but you can also use online inductor selection tools or consult with an inductor manufacturer to find the right part for your application.
While the datasheet specifies an operating junction temperature range of -40°C to 125°C, the maximum ambient temperature depends on the specific application and the thermal design of the system. As a general rule, it's recommended to keep the ambient temperature below 85°C for reliable operation.
To ensure EMC compliance, follow proper PCB layout and design guidelines, use shielding and filtering components as needed, and perform EMC testing according to relevant standards such as CISPR 22 and EN 55022.
The recommended input capacitor type is a low-ESR ceramic capacitor, such as an X5R or X7R dielectric type. The value depends on the input voltage and output current, but a general rule of thumb is to use a capacitor with a value of at least 10uF and a voltage rating of at least 1.5 times the input voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS62360YZHT Overview

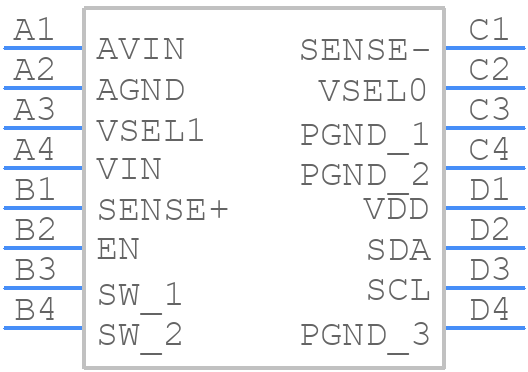

Use the download button to access the TPS62360YZHT schematic symbol, PCB footprint, and 3D model.
