A good PCB layout for the TPS62746YFPR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, it's essential to follow the recommended output capacitor selection guidelines, use a low-ESR capacitor, and ensure the output voltage is within the recommended range. Additionally, the input voltage should be stable and within the recommended range.
The maximum ambient temperature range for the TPS62746YFPR is -40°C to 85°C. However, the device can operate at a higher temperature range with derating.
Yes, the TPS62746YFPR is suitable for high-reliability applications. It's manufactured using a high-reliability process, and it's qualified to automotive and industrial standards. However, it's essential to follow the recommended design and layout guidelines to ensure the device operates within its specifications.
To troubleshoot issues with the TPS62746YFPR, start by verifying the input voltage, output voltage, and current. Check the PCB layout and ensure it follows the recommended guidelines. Use an oscilloscope to check for noise and oscillations. If the issue persists, consult the datasheet and application notes or contact Texas Instruments' support team.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS62746YFPR Overview

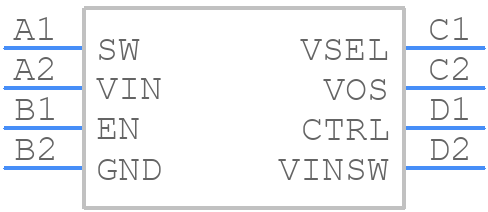

Use the download button to access the TPS62746YFPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS62,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
