ADJ O/P VOLTAGE= 1V TO 15V; ALSO OPERATES WITH PFM MODE
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
VOLTAGE-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
5.5 V
Input Voltage-Min:
2.5 V
Input Voltage-Nom:
3.6 V
JESD-30 Code:
S-PBGA-B16
JESD-609 Code:
e1
Length:
1.582 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.3 A
Output Voltage-Max:
15 V
Output Voltage-Min:
1 V
Output Voltage-Nom:
12 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
VFBGA
Package Shape:
SQUARE
Package Style:
GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.5 mm
Surface Mount:
YES
Switcher Configuration:
BUCK-BOOST
Switching Frequency-Max:
2000 kHz
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form:
BALL
Terminal Pitch:
0.4 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
30
Width:
1.582 mm
TPS62770YFPT Frequently Asked Questions (FAQs)
A good PCB layout for the TPS62770YFPT involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, it's essential to follow the recommended output capacitor selection guidelines, use a low-ESR capacitor, and ensure the output capacitor is placed close to the device. Additionally, the output voltage should be monitored and adjusted as needed to prevent oscillations.
The TPS62770YFPT is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's essential to ensure the device's junction temperature remains within the specified range to prevent overheating.
Yes, the TPS62770YFPT is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is suitable for use in harsh environments. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific application requirements.
To troubleshoot issues with the TPS62770YFPT, start by verifying the input voltage, output voltage, and output current. Check the PCB layout, component selection, and soldering quality. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS62770YFPT Overview

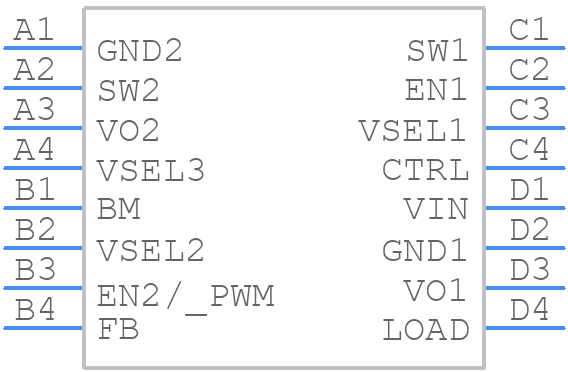

Use the download button to access the TPS62770YFPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS62,
or try a keyword search, such as Switching Regulator or Controllers
