ALSO ADJUSTABLE VOUT=(0.4-0.775 VOLT);PFM TECHNIQUE ALSO USED
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
VOLTAGE-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
5.5 V
Input Voltage-Min:
1.75 V
Input Voltage-Nom:
3.6 V
JESD-30 Code:
R-PBGA-B6
JESD-609 Code:
e1
Length:
1.054 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.6 A
Output Voltage-Max:
0.775 V
Output Voltage-Min:
0.4 V
Output Voltage-Nom:
0.7 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
VFBGA
Package Equivalence Code:
BGA6,2X3,14
Package Shape:
RECTANGULAR
Package Style:
GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.4 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
1500 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form:
BALL
Terminal Pitch:
0.35 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
30
Width:
0.704 mm
TPS62806YKAR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency layout guidelines, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. TI recommends using low-ESR ceramic capacitors with a voltage rating of at least 1.5 times the input voltage. A capacitance value of 4.7uF to 10uF is typically suitable for most applications.
The TPS62806YKAR is rated for operation up to 85°C ambient temperature, but it's recommended to derate the output current and voltage to ensure reliable operation at high temperatures. Consult the datasheet for thermal derating curves.
To ensure stability, follow the recommended PCB layout, use the recommended input and output capacitors, and ensure that the output voltage is within the specified range. Additionally, adding a small ceramic capacitor (e.g., 10nF) between the VIN and GND pins can help to prevent oscillations.
The recommended input voltage range for the TPS62806YKAR is 2.3V to 5.5V, but it can operate down to 2.0V with reduced performance. Operating outside of this range may affect the regulator's stability and output voltage accuracy.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS62806YKAR Overview

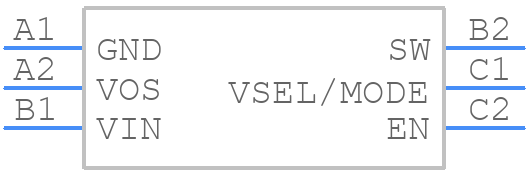

Use the download button to access the TPS62806YKAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS62,
or try a keyword search, such as Switching Regulator or Controllers
