TPS62821DLCT - Texas Instruments

Description: Switching Voltage Regulators 1A Step-Down Converter With 1% Accuracy in 1.5x2mm QFN

Download TPS62821DLCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

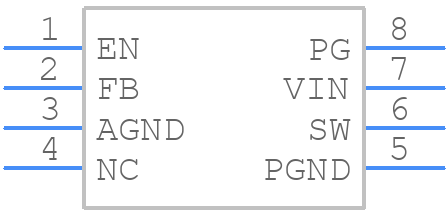

TPS62821DLCT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS62821DLCT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DLC0008A-VSON-HR-1
click to zoom
3D Models
TPS62821DLCT - Texas Instruments - 3D model - Small Outline No-lead - DLC0008A-VSON-HR-1
click to zoom

TPS62821DLCT Details

  • Manufacturer Part Number:

    TPS62821DLCT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.4 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    4 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC8,.06,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.5 mm

TPS62821DLCT Frequently Asked Questions (FAQs)

  • The recommended input capacitor value is 4.7uF to 10uF, depending on the input voltage and output current requirements. A larger capacitor value can help to reduce input voltage ripple and improve transient response.
  • The output capacitor selection depends on the output voltage, output current, and desired output ripple. A general guideline is to use a capacitor with a value between 10uF to 22uF, and an ESR (Equivalent Series Resistance) of less than 100mΩ. A lower ESR capacitor can help to reduce output voltage ripple and improve transient response.
  • The maximum input voltage that the TPS62821DLCT can handle is 17V. Exceeding this voltage can cause damage to the device.
  • To ensure stability, follow the recommended layout guidelines, use a sufficient input capacitor, and ensure that the output capacitor is properly selected. Additionally, avoid placing the device near noise sources, and use a ground plane to reduce noise coupling.
  • The TPS62821DLCT is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the device's thermal characteristics and ensure proper thermal management in your design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS62821DLCT Overview

Use the download button to access the TPS62821DLCT schematic symbol, PCB footprint, and 3D model.
