TPS62841YBGR - Texas Instruments

Description: 60-nA IQ, 1.8-V to 6.5-VIN, high-efficiency 750-mA step-down converter

Download TPS62841YBGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

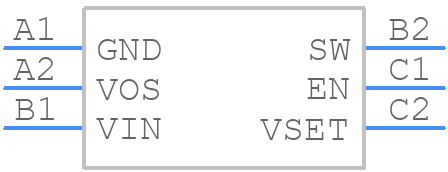

TPS62841YBGR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS62841YBGR - Texas Instruments PCB footprint - BGA - BGA - DSBGA - 0.5 mm max height
click to zoom
3D Models
TPS62841YBGR - Texas Instruments - 3D model - BGA - DSBGA - 0.5 mm max height
click to zoom

TPS62841YBGR Details

  • Manufacturer Part Number:

    TPS62841YBGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-06-27

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    1.8 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-PBGA-B6

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.75 A

  • Output Voltage-Max:

    1.55 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA6,2X3(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1800 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

TPS62841YBGR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS62841YBGR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • Choose input capacitors with a voltage rating of at least 1.5 times the maximum input voltage, and output capacitors with a voltage rating of at least 1.5 times the maximum output voltage. The capacitance value should be at least 10uF for the input capacitor and 22uF for the output capacitor. X5R or X7R ceramic capacitors are recommended.
  • The maximum ambient temperature range for the TPS62841YBGR is -40°C to 125°C. However, the device can operate up to 150°C with derating.
  • To ensure stability, make sure the output capacitor has a low equivalent series resistance (ESR) and a high capacitance value. A minimum output capacitance of 22uF is recommended. Also, ensure that the input voltage is within the recommended range and the device is operated within the recommended current range.
  • Yes, the TPS62841YBGR is suitable for high-reliability applications. It is built with a robust design and has undergone rigorous testing to ensure its reliability. However, it is essential to follow proper design and manufacturing guidelines to ensure the device operates within its recommended specifications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS62841YBGR Overview

Use the download button to access the TPS62841YBGR schematic symbol, PCB footprint, and 3D model.
