The maximum input voltage that can be applied to the TPS628503DRLR is 5.5V, as specified in the datasheet. However, it's recommended to keep the input voltage below 5V to ensure reliable operation and to prevent damage to the device.
To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet. This includes using a suitable output capacitor, such as a 10uF ceramic capacitor, and placing it close to the output pin. Additionally, ensure that the input voltage is stable and within the recommended range.
The minimum input capacitance required for the TPS628503DRLR is 1uF, as specified in the datasheet. However, it's recommended to use a higher value, such as 4.7uF or 10uF, to ensure stable operation and to filter out noise and ripple on the input voltage.
The TPS628503DRLR is rated for operation up to 125°C, but it's essential to consider the derating of the output current and power dissipation at higher temperatures. Ensure that the device is properly heatsinked and that the thermal design is adequate to prevent overheating.
The power dissipation of the TPS628503DRLR can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. Ensure that the calculated power dissipation is within the recommended limits specified in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS628503DRLR Overview

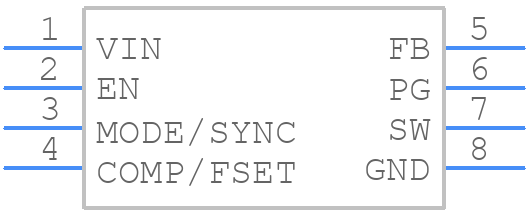

Use the download button to access the TPS628503DRLR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS62,
or try a keyword search, such as Switching Regulator or Controllers
