The maximum input voltage that can be applied to the TPS628680ARQYR is 5.5V, as specified in the datasheet. However, it's recommended to keep the input voltage below 5V to ensure reliable operation and to prevent damage to the device.
To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet. This includes using a suitable output capacitor, such as a 10uF ceramic capacitor, and placing it close to the output pin. Additionally, the input capacitor should be selected based on the input voltage and current requirements.
The minimum input capacitance required for the TPS628680ARQYR is 1uF, as specified in the datasheet. However, it's recommended to use a higher value, such as 4.7uF or 10uF, to ensure stable operation and to filter out noise and ripple on the input voltage.
The TPS628680ARQYR is rated for operation up to 125°C, but it's essential to consider the thermal design and layout of the PCB to ensure reliable operation at high temperatures. This includes providing adequate heat sinking and thermal dissipation paths to prevent overheating.
The power dissipation of the TPS628680ARQYR can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. Additionally, the datasheet provides a power dissipation graph that can be used to estimate the power dissipation based on the input voltage and output current.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS628680ARQYR Overview

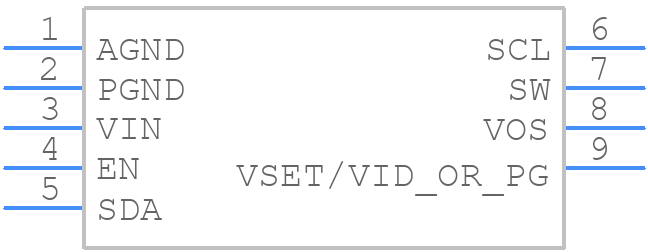

Use the download button to access the TPS628680ARQYR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS62,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
