The maximum input voltage that can be applied to the TPS63036YFGR is 17V, as specified in the datasheet. However, it's recommended to operate the device within the recommended input voltage range of 2.5V to 12V for optimal performance and reliability.
To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet. Additionally, make sure to use a suitable output capacitor with a low equivalent series resistance (ESR) and a sufficient capacitance value to filter out any noise and ripple.
The maximum output current that the TPS63036YFGR can deliver is 3A, as specified in the datasheet. However, the actual output current may be limited by the input voltage, output voltage, and the thermal performance of the device.
To optimize the efficiency of the TPS63036YFGR, it's essential to select the right input and output capacitors, and to optimize the layout to minimize the parasitic inductance and resistance. Additionally, operating the device at a lower switching frequency can also help to improve efficiency.
The EN (enable) pin on the TPS63036YFGR is used to enable or disable the device. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. This pin can be used to implement power sequencing or to shut down the device when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS63036YFGR Overview

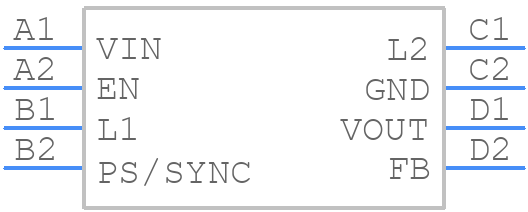

Use the download button to access the TPS63036YFGR schematic symbol, PCB footprint, and 3D model.
