TPS63036YFGT - Texas Instruments

Description: High Efficient Single Inductor Buck-Boost Converter with 1-A Switches

Download TPS63036YFGT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

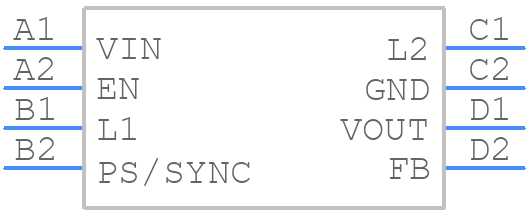

TPS63036YFGT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS63036YFGT - Texas Instruments PCB footprint - BGA - BGA - YFG (R-XBGA-N8)
click to zoom
3D Models
TPS63036YFGT - Texas Instruments - 3D model - BGA - YFG (R-XBGA-N8)
click to zoom

TPS63036YFGT Details

  • Manufacturer Part Number:

    TPS63036YFGT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 1.2 TO 5.5V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.8 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-XBGA-B8

  • JESD-609 Code:

    e1

  • Length:

    1.814 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.4 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    1.2 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.625 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    2600 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.076 mm

TPS63036YFGT Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS63036YFGT is 17V, but it's recommended to keep it below 15V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a sufficient capacitance value. A minimum capacitance of 10uF is recommended, and the capacitor should be placed as close to the output pin as possible.
  • The minimum input capacitance required for the TPS63036YFGT is 4.7uF, but it's recommended to use a higher capacitance value (e.g., 10uF) to ensure stable operation and to filter out noise and ripple.
  • The TPS63036YFGT is rated for operation up to 85°C, but it's essential to consider the derating of the device's performance and power dissipation at higher temperatures. Ensure that the device is properly cooled, and the thermal design is adequate to prevent overheating.
  • The power dissipation of the TPS63036YFGT can be calculated using the formula: Pd = (Vin - Vout) x Iout x Efficiency. The efficiency of the device can be found in the datasheet, and the input and output voltages and currents should be measured or calculated based on the application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS63036YFGT Overview

Use the download button to access the TPS63036YFGT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS63, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
