A good PCB layout for the TPS63805YFFR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
Choose input capacitors with a voltage rating of at least 1.5 times the maximum input voltage, and output capacitors with a voltage rating of at least 1.5 times the maximum output voltage. X5R or X7R ceramic capacitors are recommended for their low ESR and high reliability.
The TPS63805YFFR can operate in an ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures, so it's recommended to operate within a range of -20°C to 85°C for optimal performance.
To ensure stability, make sure the input and output capacitors are properly selected, and the PCB layout is optimized for minimal inductance and resistance. Additionally, ensure that the output voltage is within the recommended range, and the device is not operated in a region of low output current.
Yes, the TPS63805YFFR is a high-reliability device that meets the requirements of AEC-Q100, making it suitable for automotive and other high-reliability applications. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its recommended specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS63805YFFR Overview

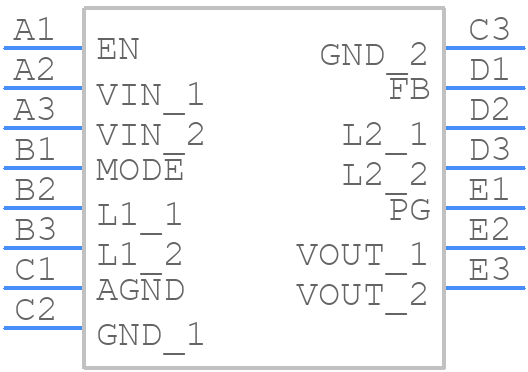

Use the download button to access the TPS63805YFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS63,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
