Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, and using a solid ground plane to reduce noise and EMI.
The selection of the inductor depends on the specific requirements of your application, such as the input voltage, output voltage, and output current. Texas Instruments provides a list of recommended inductors in the datasheet, but you may also need to consider factors such as inductor size, core material, and DC resistance.
The TPS63807YFFR is rated for operation up to 105°C ambient temperature, but the actual operating temperature may be limited by the specific application and the thermal design of the PCB.
To ensure stability, it's important to follow the recommended component values and PCB layout in the datasheet, and to use a sufficient output capacitor with a low equivalent series resistance (ESR). Additionally, the input capacitor should be placed close to the IC and have a low ESR as well.
The TPS63807YFFR is a commercial-grade device, but it may not meet the specific requirements of high-reliability or automotive applications. Texas Instruments offers other devices that are specifically designed for these applications, such as the TPS63807-Q1, which is an automotive-grade version of the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS63807YFFR Overview

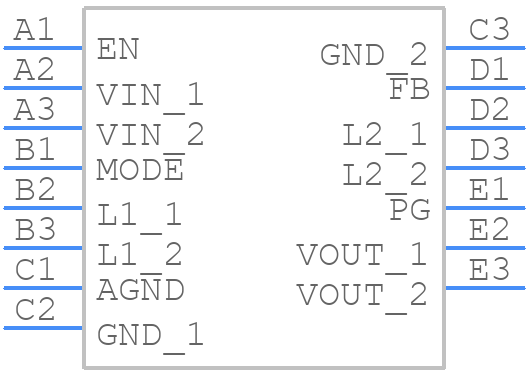

Use the download button to access the TPS63807YFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS63,
or try a keyword search, such as Switching Regulator or Controllers
