ALSO OPERATES AS LDO REGULATOR AT 1.8V, 2.8V; PFM CONTROL TECHNIQUE
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
VOLTAGE-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
6 V
Input Voltage-Min:
2.3 V
Input Voltage-Nom:
3.6 V
JESD-30 Code:
S-PQCC-N16
JESD-609 Code:
e4
Length:
3 mm
Moisture Sensitivity Level:
2
Number of Functions:
1
Number of Outputs:
3
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.6 A
Output Voltage-Nom:
1.2 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Equivalence Code:
LCC16,.12SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.8 mm
Supply Voltage-Nom (Vsup):
3.6 V
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2847 kHz
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPS650001RTET Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TPS650001RTET datasheet, but it's also important to follow general PCB design guidelines for switching regulators, such as keeping the power traces short and wide, and using a solid ground plane to reduce noise and EMI.
The selection of the inductor depends on the specific application requirements, such as the output voltage, output current, and switching frequency. Texas Instruments provides a list of recommended inductors in the datasheet, but engineers can also use online inductor selection tools or consult with inductor manufacturers to find the best inductor for their design.
The maximum ambient temperature for the TPS650001RTET is 85°C, but the device can operate up to 105°C with derating. Engineers should ensure that the device is properly cooled and that the thermal design is adequate to prevent overheating.
Yes, the TPS650001RTET is a high-reliability device that is suitable for use in automotive, industrial, and other high-reliability applications. It has been qualified to the AEC-Q100 standard and has a Moisture Sensitivity Level (MSL) of 1, which means it can withstand the rigors of high-reliability environments.
Texas Instruments provides a troubleshooting guide in the TPS650001RTET datasheet, which covers common issues such as output voltage errors, oscillations, and overheating. Engineers can also use online resources, such as the TI E2E forum, to get help from other engineers and TI experts.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS650001RTET Overview

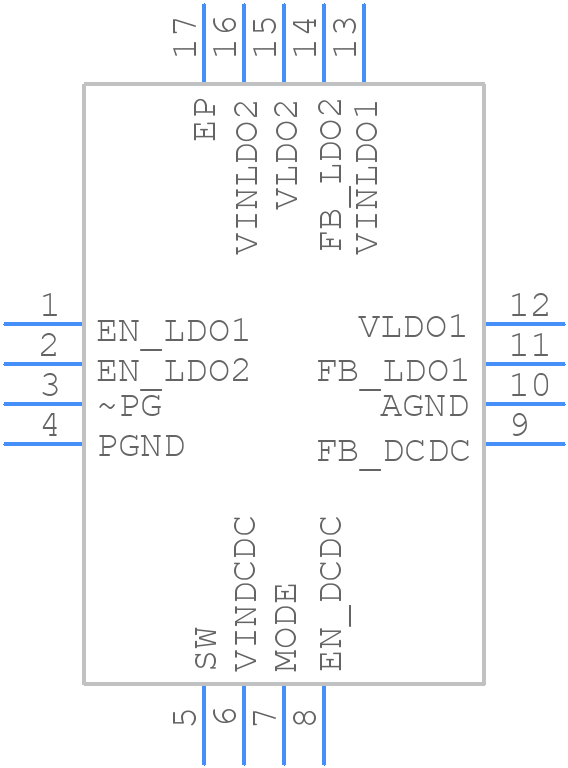

Use the download button to access the TPS650001RTET schematic symbol, PCB footprint, and 3D model.
