ALSO OPERATES AS LDO REGULATOR; ADJUSTABLE MODE FROM 0.6V TO 6V; PFM CONTROL TECH
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
VOLTAGE-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
6 V
Input Voltage-Min:
2.3 V
Input Voltage-Nom:
3.6 V
JESD-30 Code:
S-PQCC-N20
JESD-609 Code:
e4
Length:
3 mm
Moisture Sensitivity Level:
2
Number of Functions:
1
Number of Outputs:
3
Number of Terminals:
20
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.6 A
Output Voltage-Max:
6 V
Output Voltage-Min:
0.6 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Equivalence Code:
LCC20,.11SQ,16
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.8 mm
Supply Voltage-Nom (Vsup):
3.6 V
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2847 kHz
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPS65001RUKR Frequently Asked Questions (FAQs)
The recommended layout and placement for the TPS65001RUKR involves placing the input capacitors close to the VIN pin, and the output capacitors close to the VOUT pin. The device should be placed near the power source, and the output voltage lines should be routed away from the input voltage lines to minimize noise coupling.
To optimize the compensation network for the TPS65001RUKR, you can use the Texas Instruments' WEBENCH Power Designer tool or follow the guidelines in the datasheet. The compensation network consists of R1, R2, C1, and C2, and the values depend on the output voltage, output current, and input voltage.
The maximum input voltage that the TPS65001RUKR can handle is 18V. Exceeding this voltage may damage the device.
The TPS65001RUKR is rated for operation up to 85°C. However, the device's performance and reliability may degrade at higher temperatures. It's recommended to derate the output current and voltage according to the temperature derating curve in the datasheet.
To ensure the TPS65001RUKR is stable and doesn't oscillate, follow the layout and placement guidelines, use the recommended compensation network, and ensure that the input and output capacitors meet the recommended specifications. Additionally, avoid using capacitors with high equivalent series resistance (ESR) and ensure that the output voltage is within the recommended range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65001RUKR Overview

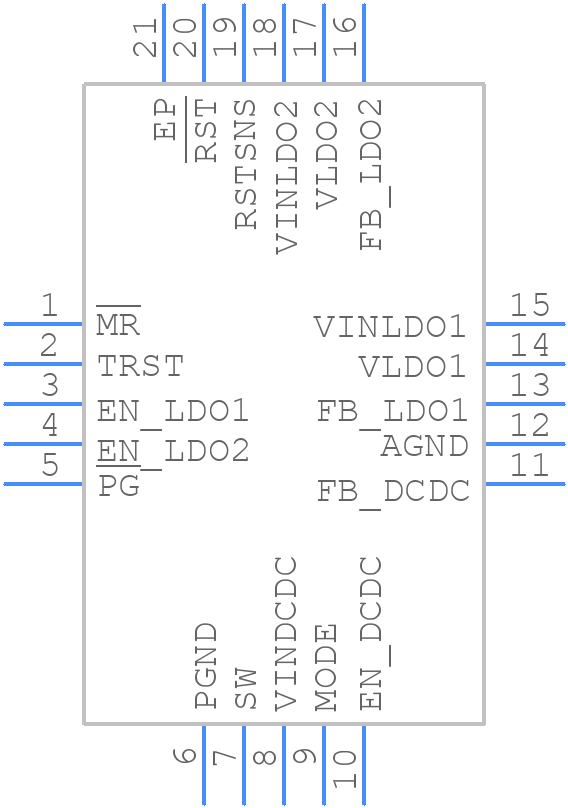

Use the download button to access the TPS65001RUKR schematic symbol, PCB footprint, and 3D model.
