TPS65013RGZR - Texas Instruments

Description: Battery Management Multi-Channel 1-cell Li-Ion

Download TPS65013RGZR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

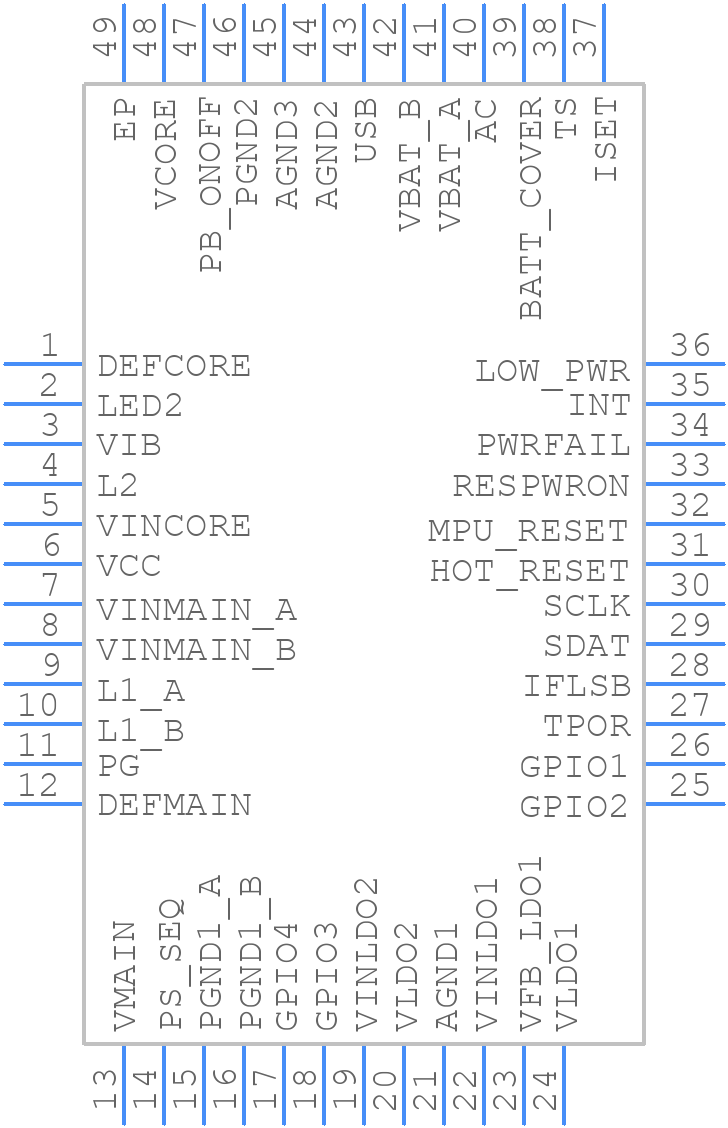

TPS65013RGZR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65013RGZR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ-2020
click to zoom
3D Models
TPS65013RGZR - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ-2020
click to zoom

TPS65013RGZR Details

  • Manufacturer Part Number:

    TPS65013RGZR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR/PROTECTOR

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    1.8 V

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    4

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    6.5 V

  • Output Voltage-Min:

    0.85 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    1500 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TPS65013RGZR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and placement guide in the TPS65013RGZR datasheet (Section 10.2) and in the application note 'TPS65013 Layout and Thermal Considerations' (SLUAAC7). It's essential to follow these guidelines to ensure proper thermal performance and minimize electromagnetic interference (EMI).
  • The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. Texas Instruments recommends using a low-ESR ceramic capacitor with a minimum capacitance of 10 μF and a voltage rating of at least 1.5 times the output voltage. The application note 'TPS65013 Output Capacitor Selection' (SLUAAC6) provides more detailed guidance.
  • Although the datasheet specifies a maximum input voltage of 5.5 V, the device can handle input voltages up to 6 V for short durations (e.g., during power-up or voltage transients). However, sustained operation above 5.5 V may reduce the device's reliability and lifespan.
  • The output voltage is set using the FB pin and an external resistor divider network. The datasheet provides a formula to calculate the required resistor values for a given output voltage. Additionally, Texas Instruments offers a voltage calculator tool (TPS65013 Voltage Calculator) to simplify the process.
  • The thermal shutdown temperature is typically around 150°C, but this value can vary depending on the specific device and operating conditions. It's essential to ensure proper thermal design and heat sinking to prevent overheating and thermal shutdown.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS65013RGZR Overview

Use the download button to access the TPS65013RGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
