Texas Instruments provides a recommended layout and placement guide in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
To optimize the TPS65020RHARG4 for low-power consumption, ensure that the input voltage is as close to the output voltage as possible, use a low-quiescent-current (Iq) mode, and adjust the switching frequency to the lowest possible value while maintaining the required output voltage. Additionally, consider using a low-dropout linear regulator (LDO) for the output stage.
The TPS65020RHARG4 can handle input voltages up to 18V, but it's essential to ensure that the input voltage does not exceed the absolute maximum rating of 20V to prevent damage to the IC.
To troubleshoot issues with the TPS65020RHARG4, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, component selection, and thermal management. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
The TPS65020RHARG4 is rated for operation up to 125°C, but it's essential to ensure proper thermal management, such as using a heat sink or thermal pad, to prevent overheating. Consult the datasheet and thermal design guidelines for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65020RHARG4 Overview

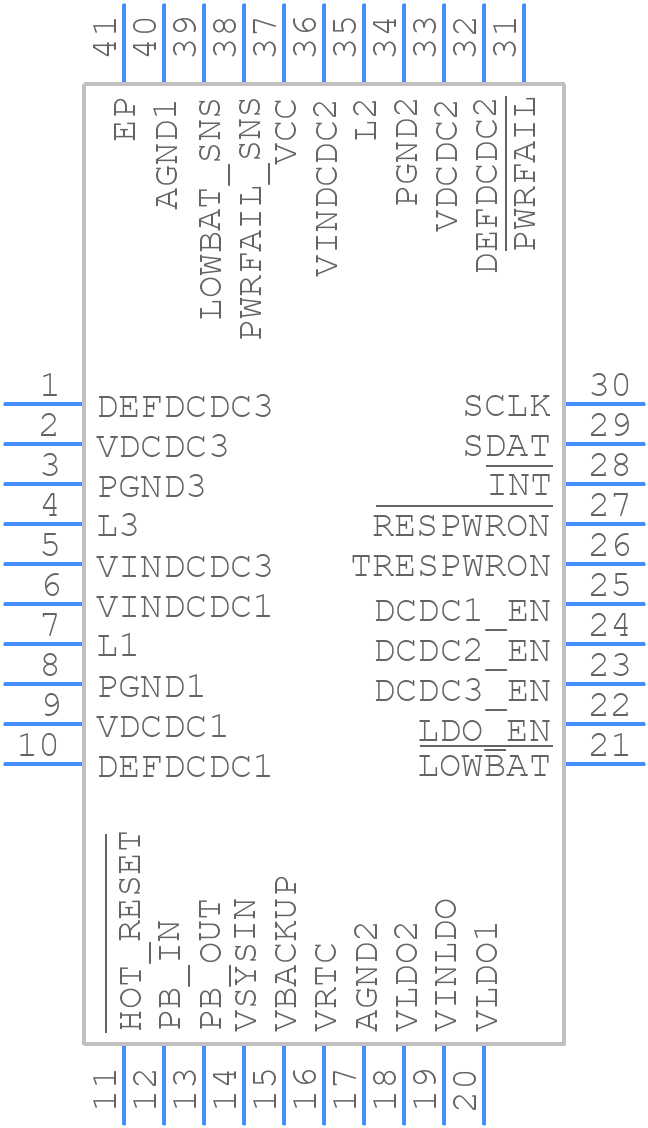

Use the download button to access the TPS65020RHARG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
