TPS65021RHAR - Texas Instruments

Description: 6-channel Power Management IC (PMIC) with 3DC/DCs, 3 LDOs, I2C interface and Dynamic Voltage Scaling

Download TPS65021RHAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

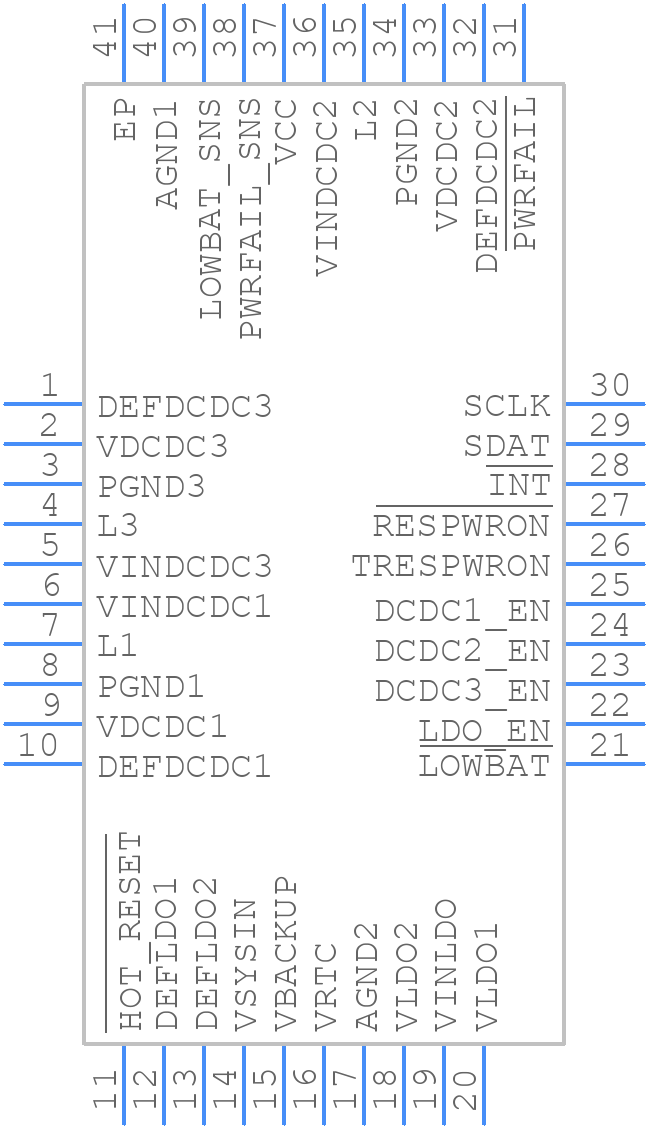

Symbol
TPS65021RHAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65021RHAR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHA0040B_2021
click to zoom
3D Models
TPS65021RHAR - Texas Instruments - 3D model - Quad Flat No-Lead - RHA0040B_2021
click to zoom

TPS65021RHAR Details

  • Manufacturer Part Number:

    TPS65021RHAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    40

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    2.5 V

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    6

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.2 A

  • Output Voltage-Max:

    6 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.043 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    1700 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

TPS65021RHAR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS65021RHAR is 5.5V, as specified in the datasheet. However, it's recommended to operate the device within the recommended input voltage range of 2.7V to 5.5V for optimal performance and reliability.
  • To ensure the TPS65021RHAR is properly configured for your specific application, carefully review the datasheet and application notes. Pay attention to the recommended operating conditions, pin connections, and configuration options. You may also want to consult with a Texas Instruments representative or a qualified engineer for guidance.
  • The typical startup time for the TPS65021RHAR is around 10ms, but this can vary depending on the specific application and operating conditions. It's essential to consult the datasheet and application notes for more information on startup time and other timing parameters.
  • The TPS65021RHAR is rated for operation up to 85°C, but it's essential to consider the device's thermal characteristics and ensure proper thermal management in your design. Consult the datasheet and application notes for more information on thermal considerations.
  • To troubleshoot issues with the TPS65021RHAR, start by reviewing the datasheet and application notes. Check for proper pin connections, voltage levels, and configuration. Use oscilloscopes or logic analyzers to monitor signals and identify potential issues. Consult with a Texas Instruments representative or a qualified engineer for guidance if needed.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS65021RHAR Overview

Use the download button to access the TPS65021RHAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
